Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block

Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block
Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block

Large Image :  Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHD660
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Std export way
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Detailed Product Description
Features: Cast Sheave Middle Model: SHD660
Rated Load: 40kn Materail: Nylon Sheave, Or Aluminum
Number Of Sheave: 2 Weight: 30kg
High Light:

cable pulling tools

,

transmission tools and equipment

Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block



Our 660 large diameter stringing block is fitted with the maximm suitable conductor LGJ550, this is to say the aluminum of this conducting wire possesses the cross section at most is 550 squre millimeters.

In addition, Block dimension (outside diameter *root diameter*sheave width)Φ660*Φ560*100mm.

the middle sheave of both 10122 and 10123 types has a width of 90mm, we can also supply the middle nylon sheave with the wide of 90mm for option, also the diamnsion of Φ660*Φ560*100mm can be customized.

Specifications

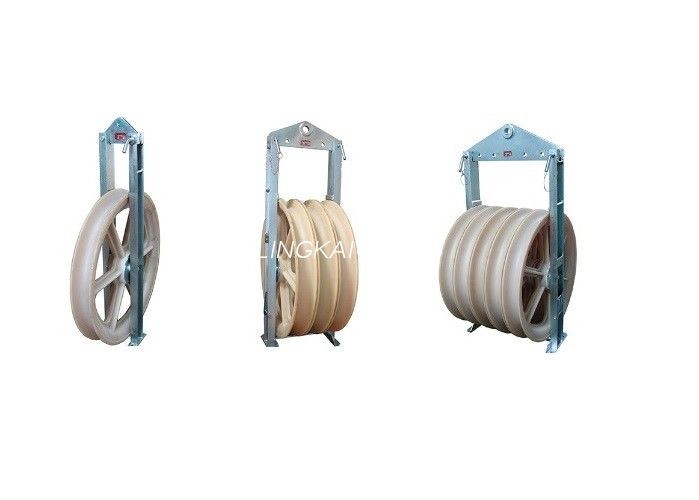

Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block,it has one, three, five and seven sheaves.If only one sheave, it can be rubber coated aluminum sheave, and MC nylon sheave. Three, Five,Seven sheaves,has the Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave.

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features
10121 SHD660 1 20 30 Rubber coated aluminum sheave
10122 SHS660 3 40 106 Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave
10123 SHW660 5 60 150
10124 SHDN660 1 20 24 MC nylon sheave
10125 SHSLN660 3 40 92 Middle: MC nylon sheave Conductor: rubber coated aluminum sheave
10126 SHWLN660 5 60 120
10127 SHSQN660 3 40 76 MC nylon sheave
10128 SHWQN660 5 60 110
10129 SHQZ660 7 80 268 Middle: cast steel sheave Conductor: rubber coated aluminum sheave
10130 SHQ660A 7 75 190 Middle: cast steel sheave Conductor: MC nylon sheave

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

Single Sheave 660 Diameter Transmission Line Stringing Tools Stringing Block 0
