100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer

100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer
100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer 100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer

Large Image :  100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: PV or Plastic
Delivery Time: 8 - 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Detailed Product Description
Name: Cable Reel Trailer Model: LS10T
Load: 10 T Max Lifting Height: 2000 Mm
Weight: 1500 Kg
High Light:

cable pulling accessories

,

underground cable installation equipment

100KN Cable Carriage Vehicle,Underground Cable Tools,Cable Drum Trailer

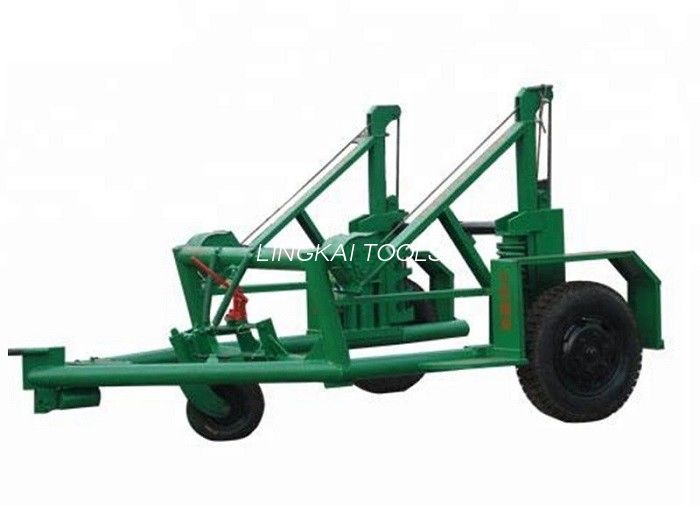

Information about the Cable Drum Trailer

100KN Cable Carriage Vehicle,Underground Cable Tools,Cable Drum Trailer,which is used for cable drum hauling and cable pulling-pushing. Adopt mechanical lifting method, simple operation, stable and durable. The traction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.

Please contact us is you have any requirement, and we can make products with special specification as your requirements.

Cable drum trailer, cable reel trailer,Technical Data

100KN Cable Carriage Vehicle,Underground Cable Tools,Cable Drum Trailer

Model Max Load Weight Max Lifting Height Inside Wide length Wide High
(T) (kg) mm mm (mm) (mm) (mm)
LS-3T 3 600 1550 1400 3700 2200 1800
LS -5T 5 900 1750 1650 4000 2700 2180
LS -8T 8 1200 1900 1950 4200 3200 2300
LS -10T 10 1500 2000 2000 4300 3400 2400
LS -12T 12 2600 2000 2000 4300 3400 2400

Technical Data of Underground cable installation tools 10Ton hydraulic cable drum trailer/reel carrier

Model Rated Load Weight(kg) Applicable coil diameter(mm) Applicable coil width(mm) Overall dimensions(mm)
LS-10T 10T 2800 ≤3500 ≤1850 4300×3400×2800

Application:100KN Cable Carriage Vehicle,Underground Cable Tools,Cable Drum Trailer

It is used for cable drum hauling and cable pulling-pushing.The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.

Note:100KN Cable Carriage Vehicle,Underground Cable Tools,Cable Drum Trailer

We can make products with special specification as your requirements.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer 0

Factory price:
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.

Feedback:
Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services

Other Underground Cable Tools:

100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer 1100 KN Green Underground Cable Tools , Easy To Move Cable Spool Trailer 2
