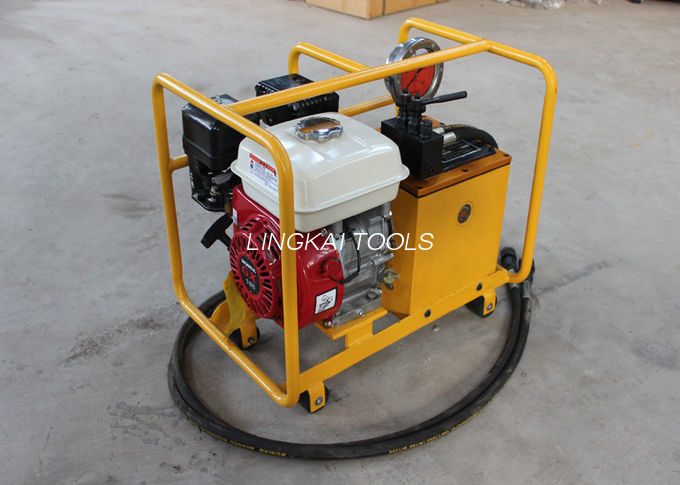

High Pressure Honda Engine Hydraulic Pump , 80Mpa Hydraulic Pump Station

High Pressure Honda Engine Hydraulic Pump , 80Mpa Hydraulic Pump Station
High Pressure Honda Engine Hydraulic Pump , 80Mpa Hydraulic Pump Station High Pressure Honda Engine Hydraulic Pump , 80Mpa Hydraulic Pump Station

Large Image :  High Pressure Honda Engine Hydraulic Pump , 80Mpa Hydraulic Pump Station

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JYB80Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Detailed Product Description
Name: Pump Station Engine: Honda Gasoline
Advantage: High Pressure Rated Oil Pressure: 80Mpa
Flow: 1.5L/min Weight: 80kg
High Light:

powerline construction tools

,

tower erection tools

High Pressure 80Mpa Honda Engine Hydraulic Pump,Hydraulic Pump Station



High Pressure 80Mpa Honda Engine Hydraulic Pump,Hydraulic Pump Station

Application of Honda Gasoline Engine Hydraulic Oil Pump : to provide power for the cutting tool, the hydraulic compressor, punching machine and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.It is very easy to operate and highly safety.it is delicate and beautiful appearance design, last very long life,durable, precise machining technique, and broaer applicable scope, in all this one owns good quality and less malfunction.

Information:High Pressure 80Mpa Honda Engine Hydraulic Pump,Hydraulic Pump Station

1 Electromagnetic valve control to withdraw piston in any position.

2 High and low speed two stage for quick oil output.

3 Pressure safety valve over pressure unit could avoid over pressure damage.

4 High pressure is for driving piston and low pressure is for piston reset.

5 Oil pipe fitted with quick coupling could be ordered at any length.

Main component:High Pressure 80Mpa Honda Engine Hydraulic Pump,Hydraulic Pump Station

1. Engine : HONDA Gas Engine

2. Main variable pump and main motor :HONDA

Data sheet of Hydraulic pump station

Model Rated Oil Pressure Flow(L/min) Engine Weight(kg)
JYB-80Q 80Mpa 1.5 HONDA Gasoline engine 80

We also are making the other types pump, as diesel and electric pump, with the different parameters. Pls freely find us to ask more.

Model Rated Oil Pressure Floe(L/min) Engine Weight(kg)
JYB-80Q 80Mpa 1.5 Honda G×160 5.5HP 80
JYB-80C 80Mpa 1.5 170F Diesel 4HP 100
JYB-80D 80Mpa 1.5 Electric Engine 1.5KW 90

High Pressure Honda Engine Hydraulic Pump , 80Mpa Hydraulic Pump Station 0
