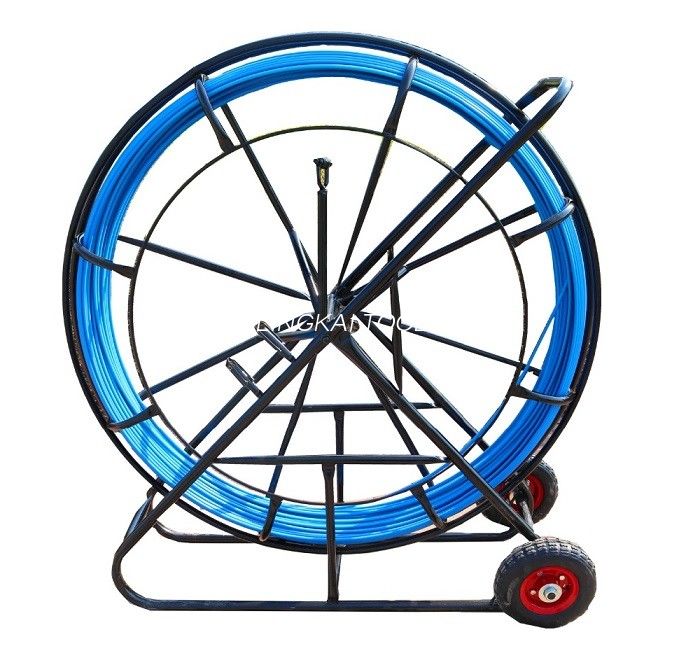

Electric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m

Electric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m
Electric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m Electric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m

Large Image :  Electric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: Duct Rodder
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/month
Detailed Product Description
Name: Conduit Rodder Apply: Pipe Cleaning
Color: Customized Length: 200m
Diameter: 10mm Site: Push Or Pull Cable In Electric Conduit
High Light:

cable pulling device

,

cable pulling accessories

Conduit Rodder Cable Tools to Push or Pull Cable in Electric Conduit



Here we talk about the conduit rodder mainly points a rodder, which working underground, such as conduit, duct, pipe, for push or pulling cable and wire. And we named this rodder for conduit rodder, conduit push rods or conduit rod as its working environment. You can find a range of sizes for the conduit rodders measured in millimeters from Ean machinery. They will typically range from 4mm to 16mm. Additionally, Fiberglass is the most important material for conduit rodders, we also call this rodder as fiberglass rodder.

Electric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m 0  Electric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m 1

Duct Push Rodder

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

Which is the Suitable Rod Size for any Given Application?

When rodders being pushed through the conduit, any rod will show its trajectory tend to form “sine waves”, hitting the wall of the conduit at certain intervals. each time the rod comes in contact with the wall of the conduit, it causes friction. The friction will build and eventually prevent the rod from being pushed any further. Large rod in small ducting is a good situation, but reduced flexibility of the rod may cause increased friction in the tighter bends.
Here is usually governed by several factors including:

  • The size of ducting is to be pushed through
  • The distance the rod is to be pushed
  • The number and tightness of bends in the ducting
  • If the ducting is already occupied by cableElectric Fiber Optics Tools And Equipments Fiberglass Conduit Rodder Length 200m 2
  • Instruction of conduit rodder

    Protectint Drawing Head:For using conduit rodder normatively, drawing head should be protect well (conduit rodder usually design with coppersurfaced drawing head, which could be tighten or screw off), and shouldn’t be broken. When using conduit rodder, you should pull the drawing head through rod guide firstly, then threading, pulling and cleaning conduit.
    Minimum Bending Radius:as the Material characteristics of fiberglass conduit rodder is hard and brittle. You’d better maintain the minimum diameter of bending and can’t be less than 80 cm. In pipelines or other construction environments, where the angle of the pipeline is right angle or less than 90 degrees, special care should be taken to protect the traction head from being broken off. When pulling out from drain, some precautions should be taken to prevent the conduit rodder from being damaged (cable pulling rollers is the ideal tools to be using at corner).
    Working Temperature: the range of temperature is -40~+80℃, which fiberglass conduit rodder could work safely. So during Construction process, you should avoid any inappropriate behavior. Conduit rodder should been far away from supercooling or superheating objects or environment, the product should be placed in a cool place to avoid prolonged sun exposure, rain shower.
    Max. Pull Strength: 2.5 tons is the maximum linear traction of FRP conduit rodder, it means you can’t push or pull the rodders with high-power mechanical at angles ≤90°. Otherwise, it will shorten the service life greatly.
    Using Cable Grips: When using a rodders in large cable constructions, you can not directly pull the cable with a rod. Using a drawing head to pull a cable grip and tie the cable with a cable grip. Then the rodder’s service life will be greatly improved. A kind of cable pulling rollers to improve work efficiency, protect the conduit rodders
