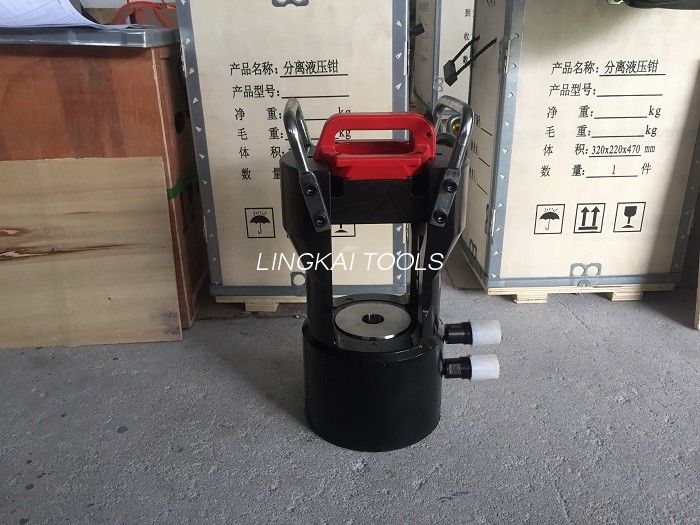

Manually Operated 100 Ton Hydraulic Crimping Head For Compression Of ACSR

Manually Operated 100 Ton Hydraulic Crimping Head For Compression Of ACSR
Manually Operated 100 Ton Hydraulic Crimping Head For Compression Of ACSR Manually Operated 100 Ton Hydraulic Crimping Head For Compression Of ACSR Manually Operated 100 Ton Hydraulic Crimping Head For Compression Of ACSR

Large Image :  Manually Operated 100 Ton Hydraulic Crimping Head For Compression Of ACSR

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: YJD1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/week
Detailed Product Description
Crimping Force: 100T Crimping Range: 14-76mm
Crimping Tyep: Hexagon Crimping Stroke: 24mm
Pump: Hydraulic Pump Rated Pressure: 80Mpa
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Manually Operated 100 Ton Hydraulic Crimping Head For Compression of ACSR



Split-type Hydraulic Crimping Pliers Production:

Item number

16103 16103A 16104 16105 16106

Model

YJD-600 YJD-1000 YJD-1250 YJD-2000 YJD-3000

Crimping

force

60T 100T 125T 200T 300T

Crimping

range

14-55mm 14-76mm 14-76mm 14-90mm 14-100mm

Crimping

type



hexagon crimping



hexagon crimping

Stroke

24mm 24mm 35mm 35mm

Heigth

approx.370mm approx.480mm

(KG)

Weight

approx.N.W20KG

G.W30KG

approx.N.W30KG

G.W40KG

approx.N.W50KG

G.W60KG

approx.N.W85KG

G.W95KG

approx.N.W120KG

G.W130KG

Package

wooden case wooden case



Manually Operated 100 Ton Hydraulic Crimping Head For Compression of ACSR

Configuration:Working with an electric hydraulic pump or a petrol power hydraulic pump ( 80 MPa ).

Characteristic

1.Compression mould can be replaced, quick and safe operation;

2.A separate structure, light weight, convenient operation;

3.Used for crimp of a variety of copper, aluminum wire connection, terminal and cable;

Quick Information:

1. Donghuan brand

2. Hydraulic crimping tools, 60ton, 100tons, 125tons 200tons 300tons

3. Die can accoridngly make per demands



Manually Operated 100 Ton Hydraulic Crimping Head For Compression Of ACSR 0
