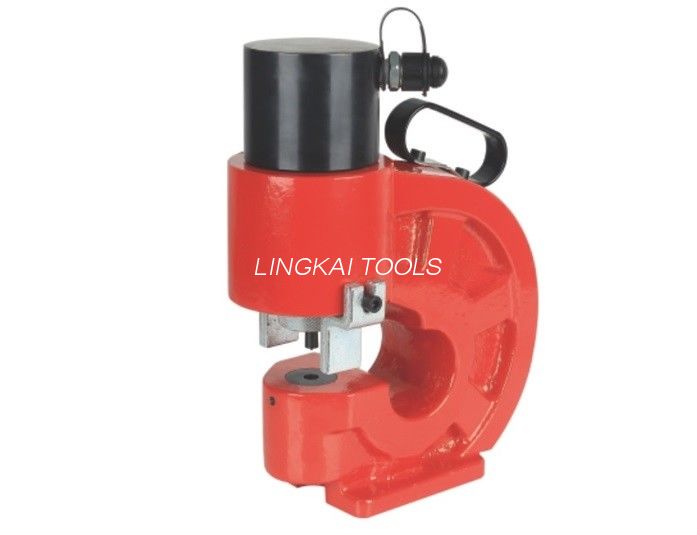

Customized Moulds Hydraulic Hole Punch Remote Control With Punching Force 350KN

Customized Moulds Hydraulic Hole Punch Remote Control With Punching Force 350KN
Customized Moulds Hydraulic Hole Punch Remote Control With Punching Force 350KN Customized Moulds Hydraulic Hole Punch Remote Control With Punching Force 350KN

Large Image :  Customized Moulds Hydraulic Hole Punch Remote Control With Punching Force 350KN

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CH70
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/day
Detailed Product Description
Name: Hydraulic Puncher Model: CH70
Punching Force: 350KN Throat Diameter: 110mm
Apply: Punching Iron And Copper Moulds: Customized
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

CH-70 Hydraulic Hole Puncher Hydraulic Punching Tools with Punching Force 350KN





Features

Operation speed of CH-70 Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.

With pressing mechanism design, punching precision is good.

With the hydraulic pump as power, it can used in no power site.

1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range

2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application

3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm

4. Punching Dies Customization is Available if samples and Drawings can be provided

5. Steel Case Package: Protect Tools well

Output 35 Ton CH-70 Hydraulic Puncher Hole Punching Tool Hydarulic Tool



Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-70

Item number

Model

(KN)

Punching

force

(MM)

Punching

thickness

(MM)

throat

diameter

(MM)

Hight

(KG)

Weight

(MM)

specification of

matching mold

hydraulic pump

06243 CH-60

300

iron6

copper10

95 350 19

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06244 CH-70 350

iron10

copper12

110 360 35

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06248 CH-80

500

iron16

copper20

115 340 45

Φ16,Φ18,

Φ22,Φ25

ZCB6-5-AB
06249 CH-100 1000

iron18

copper20

135 400 150

Φ25,Φ28,

Φ32,Φ36

ZCB6-5-AB
