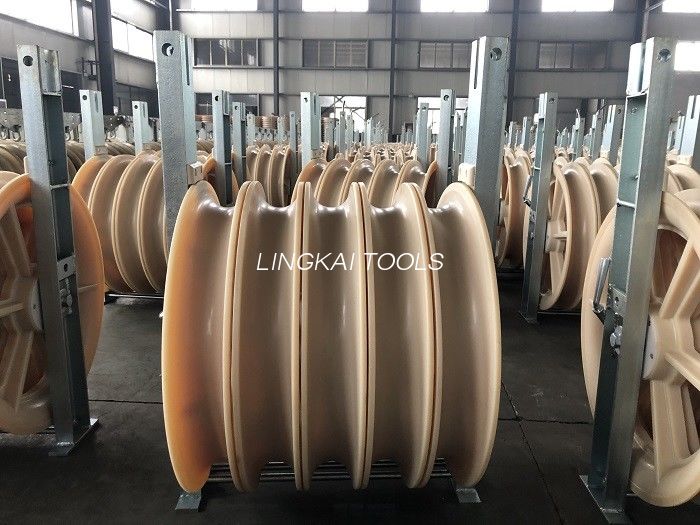

400KV Transmission Line Stringing 660mm Nylon Sheave Pulley

400KV Transmission Line Stringing 660mm Nylon Sheave Pulley
400KV Transmission Line Stringing 660mm Nylon Sheave Pulley

Large Image :  400KV Transmission Line Stringing 660mm Nylon Sheave Pulley

Product Details:
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 sets
Price: get the latest
Packaging Details: exported packing
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Detailed Product Description
Outer Diameter Of Sheave: 660mm Inner Diameter Of Sheave: 560mm
Conductor Diameter: Up To 30mm Material Of Sheave: Nylon Or Aluminum Alloy
High Light:

660mm Nylon Sheave Pulley

,

Transmission Line Stringing Nylon Sheave Pulley

,

400KV Transmission Line Stringing Pulley

400 Kv Transmission Line Stringing 660 Mm Nylon Sheave Pulley



660MM Overhead Conductor Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. The sheave is made in aluminum alloy lined with neoprene or high Strength MC Nylon.



660MM Overhead Transmission Line Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10121 SHD660 400-500 20 30 Aluminum alloy
10124 SHDN660 400-500 20 24 MC Nylon
10122 SHS660 400-500 40 106 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10125 SHSLN660 400-500 40 92
10127 SHSQN660 400-500 40 76 MC Nylon
10123 SHW660 400-500 60 150 Aluminum Alloy lined with neoprene
10126 SHWLN660 400-500 60 120
10128 SHWQN660 400-500 60 110 MC Nylon
10129 SHQZ660 400-500 80 260 Central steel, conductor sheave nylon or aluminum alloy
10130 SHQ660A 400-500 80

190





Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.





Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.



Overhead Transmission Line Large Diameter Stringing Blocks

Item No. Model No. of Sheaves Rated Load (KN)

Diameter of Groove /

Conductor Size

Weight (kg) Material Outer Dia. / width Of Sheave
10101 SHD-508x75 1 20 Φ408mm / ≤ACSR400 mm² 22.5 Aluminum

Φ508mm / 75mm



10102 SHS-508x75 3 40 86 Central sheave steel
10103 SHW-508x75 5 60 108
10104 SHDN-508x75 1 20 18.5 Nylon
10105 SHSLN-508x75 3 40 51.5 Central sheave Nylon
10106 SHWLN-508x75 5 60 91.5
10107 SHSQN-508x75 3 40 60 Nylon
10108 SHWQN-508x75 5 60 75
10121 SHD-660x100 1 20 Φ560mm / ACSR400 - 500 mm² 30 Aluminum

Φ830mm / 110mm



10122 SHS-660x100 3 40 106 Central sheave steel
10123 SHW-660x100 5 60 136
10124 SHDN-660x100 1 20 20 Nylon
10125 SHSN-660x100 3 40 92 Central sheave Nylon
10126 SHWN-660x100 5 60 120
10127 SHSQN-660x100 3 40 85 Nylon
10128 SHWQN-660x100 5 60 100
10141 SHDN-822x110 1 30 Φ710mm / ACSR500 - 630 mm² 25 Nylon

Φ916mm / 110mm



10142 SHSQN-822x110 3 60 130 Central sheave Nylon
10143 SHWQN-822x110 5 90 180
10144 SHSQN-822x110 3 60 100 Nylon
10145 SHWQN-822x110 5 90 130
10151 SHDN-916x110 1 50 Φ800mm / ACSR720 - 800 mm² 45 Nylon
10152 SHSQN-916x110 3 80 140
10153 SHWQN-916x110 5 150 235

Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
