Wearproof Hydraulic Puller Tensioner Bull Wheel Tensioner With MC Rexroth Valve

China Wearproof Hydraulic Puller Tensioner Bull Wheel Tensioner With MC Rexroth Valve supplier
Wearproof Hydraulic Puller Tensioner Bull Wheel Tensioner With MC Rexroth Valve supplier Wearproof Hydraulic Puller Tensioner Bull Wheel Tensioner With MC Rexroth Valve supplier

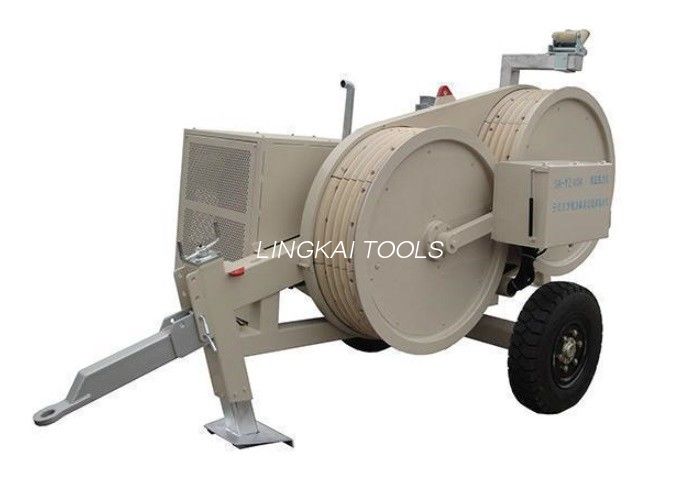

Large Image :  Wearproof Hydraulic Puller Tensioner Bull Wheel Tensioner With MC Rexroth Valve

Product Details:

Place of Origin: NINGBOCHINA
Brand Name: Lingsheng
Certification: ISO CE
Model Number: SY-YZ40A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std exported package
Delivery Time: 30 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 sets / month
Contact Now
Detailed Product Description
Name: SA-YZ40A Continous Tesnion: 35KN
Number Of Groove: 5 Type: Cable Tensioner
Maximum Speed (km/h): 5 Hydraulic Valve: Rexroth (BOSCH)

SA-YZ40KN Hydraulic Cable Tension Stringing Equipment With MC Nylon Bullwheel Rexroth Valve



OurYZ40 Hydraulic Tensioner is suitable for the tension stringing operation of various steel wire ropes, conductors, and earth wires. Its bullwheel is lined with the abrasion resistant MC nylon material, and the groove spacing is ultra wide. Additionally, this product can achieve the constant-tension conductor stringing, due to the infinitely variable tension control.

In case of hydraulic failure, the spring applied hydraulically released multi-plate brake can work automatically, thus ensuring the safe operation. Our YZ40A Hydraulic Tensioner is also equipped with the hydraulic-power output interface, which is used to connect the shaft bracket of hydraulic wire.

Description

SA-YZ40KN Hydraulic Puller Tensioner With MC Nylon Bullwheel Rexroth Valve

a. They are widely used for stringing the conductors & cables(OPGW,ADSS,500kv tractiong rope,LGJ series,etc.).

b. This machine has a set of tension early warning system,which can automatically adjust the speed according to the undue load or friction produced on the line and can keep the tension at setting value.

c. Tension or pulling force can be preset,spring applied brake,reliable overhead protection mechanism,easy to operate.

Application

SA-YZ40KN Hydraulic Puller Tensioner With MC Nylon Bullwheel Rexroth Valve

30KN Hydraulic wire tension device adequate to tension releasing various conducts and earthwires .and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS self–stand optic cable etc .

Feature

SA-YZ40KN Hydraulic Puller Tensioner With MC Nylon Bullwheel Rexroth Valve

Bullwheel with wearproof MC nylon lining segments.

infinitely variable tension control and constant tension conductor stringing .

spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety

attached hydraulic power output interface to connect hydraulic reel stand .

Main component

SA-YZ40KN Hydraulic Puller Tensioner With MC Nylon Bullwheel Rexroth Valve

Engine : Cummines water-cooled engine .

Main pump/motor :Rexroth (BOSCH)

Reducer :RR(Italian)

Hydraulic valve:Rexroth (BOSCH)

Radiator:AKG

Hydraulic instrument:

Technical Data

SA-YZ40KN Hydraulic Puller Tensioner With MC Nylon Bullwheel Rexroth Valve

Maximum Tension(kN) 40
Continuous Tension(kN) 35
Maximum speed (km/h) 5
Bull wheel bottom of groove diameter(mm) Φ1200
Number of grooves 5
Maximum pullback (kN) 40
Maximum speed back (km/h) 3
Maximum suitable conductor diameter (mm) Φ32
Engine power /speed (kW/rpm) 52/2500
Dimensions (mm) 3400×1800×2400
Weight(kg) 2800

Storage Show

Wearproof Hydraulic Puller Tensioner Bull Wheel Tensioner With MC Rexroth Valve
