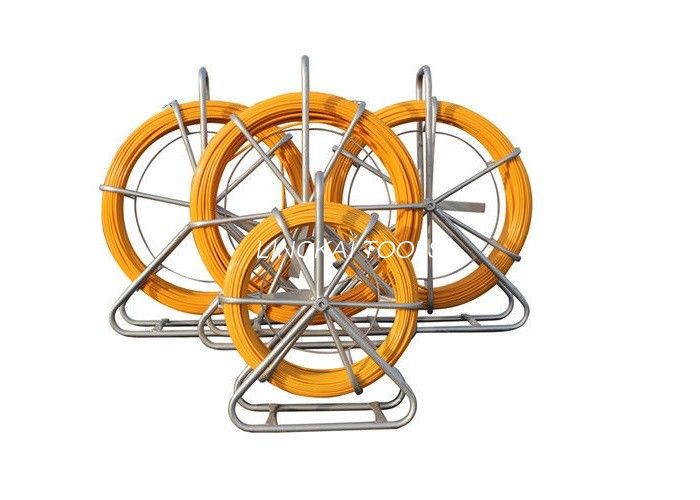

Metal Frame Flexible Cable Duct Rodder Plastic Layer With Rubber Wheels

China Metal Frame Flexible Cable Duct Rodder Plastic Layer With Rubber Wheels supplier
Metal Frame Flexible Cable Duct Rodder Plastic Layer With Rubber Wheels supplier Metal Frame Flexible Cable Duct Rodder Plastic Layer With Rubber Wheels supplier

Large Image :  Metal Frame Flexible Cable Duct Rodder Plastic Layer With Rubber Wheels

Product Details:

Place of Origin: NINGBO CHINA
Brand Name: Lingsheng
Certification: ISO CE
Model Number: LS001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 7days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Contact Now
Detailed Product Description
Color: Orange Name: Fiberglass Drainer
Wheel: Smaller Without, Big With Brand: Lingsheng
Packing: Plastic Woven Bag And Carton Box Or Customized Length: You Decide

Orange Flexible FRP Duct Roller / Fiberglass Duct Rodders / Fiberglass Drainer



Fiberglass Duct Rodder Structure

Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.

Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.

There is copper wire inside for tracing easily.

Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.

Fiberglass Duct Rodder Specifications

Orange Flexible Fiberglass Duct Rodder Plastic Layer With Rubber Wheels

Technical Date of Fiberglass Duct Rodder
Specification Rod Diameter (mm) Φ 4,Φ 5,Φ 6,Φ 8,Φ 10, Φ 11, Φ 12, Φ 13, Φ 14, Φ 15, Φ 16
Rod Length (m) 30m~350m
Frame Spec. (mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700,420x180x400
Material: Fiber glass rod inner, Extruded by fiber glass and high strength resin at high temperature
Fiber glass rod outer High Density polyethylene coating
Metal Frame Steel with high-temperature sprayed plastic or hot dip galvanized
Physical Property Fiber glass content 75-80%
Density > 1.9gr/cm3
Working environment -40° C to +80° C
Minimum Pulling strength 4000N +/-5%
Consistency of rod 137gr/m
Flexural Modulus > 46.500Mpa
Elongation at break 2.5-3%
Min Bending Radius

388mm



Application:

Flexible FRP Duct Roller / Fiberglass Duct Rodders / Fiberglass Drainer

1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.

2. Available push pull rodder

3. With cable roller

4. Lightweight and non-conductive

Pls check the Dia we control

Metal Frame Flexible Cable Duct Rodder Plastic Layer With Rubber Wheels

Can you customize the products as per our request?
A.: Yes, we do OEM and ODM. We could make the product suggestion based on your idea and budget.

How to get a sample from you?
A.: All samples will be free if unit cost under 10USD, but the freight should be on your side.
If sample sent by your express account like DHL, UPS etc, we will send sample to you directly (freight collect)

If sample sent by our express account like DHL,UPS etc, you should pay freight in advance (freight prepaid)
Any sample cost could be returned to you as part payment for next large order

How about the delivery date?
A.: Within 15 days after deposit received. Urgent order or small order will be handled case by case.

What are your Payment terms?

A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

Other Cable Pulling Tools:
