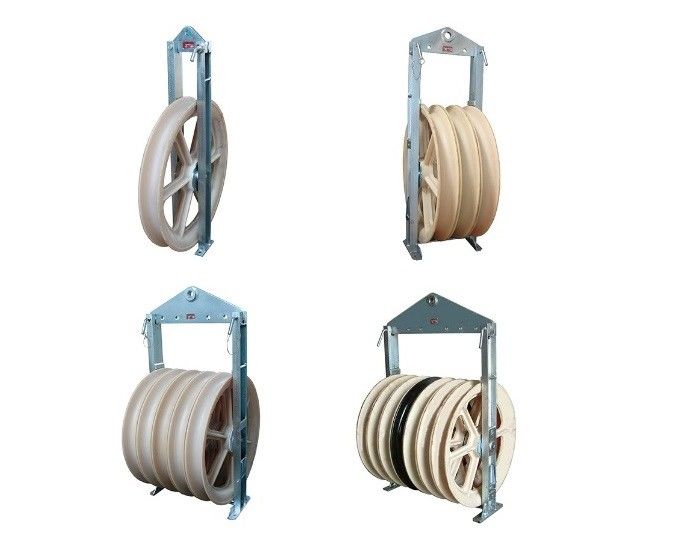

508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley

China 508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley supplier
508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley supplier 508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley supplier

Large Image :  508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley

Product Details:

Place of Origin: NINGBO CHINA
Brand Name: Lingsheng
Certification: ISO CE
Model Number: SHD508

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export packing
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Contact Now
Detailed Product Description
Name: 508 Stringing Block Suitable For: Conductor ACSR400
Apply: Stringing Line Load: 2T,4T,6T
Number Of Sheave: 1,3,5 Material: MC Nylon Sheave,rubbered Aluminum Sheave

508mm Diameter Bundled Conductor Pulley Stringing Pulley Block With Nylon Wheel



ACSR Conductor Wire Nylon Pulley Block

This 508mm Large Diameter Stringing Block ,large diameter stringing pulley block and stringing conductor block comes with the maximum suitable conductor LGJ400. In other words, our product is adaptable to the conducting wire which has the aluminum's nominal cross section of up to 400 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ508×Φ408×75 (mm).

Bundled Conductor Pulley Stringing Pulley Block Technical Parameters

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features of Sheave
10101 SHD508 1 20 18 Rubber coated aluminum sheave
10102 SHS508 3 40 61

Middle: cast steel sheave

Conductor: Rubber coated aluminum sheave

10103 SHW508 5 60 93
10104 SHDN508 1 20 16 MC nylon sheave
10105 SHSLN508 3 40 47

Middle: MC nylon sheave

Conductor: Rubber coated aluminum wheel

10106 SHWLN508 5 60 79
10107 SHSQN508 3 40 43 MC nylon sheave
10108 SHWQN508 5 60 70

Note Bundled Conductor Pulley Stringing Pulley Block

Maximum suitable conductor ACSR400;

Sheave dimension ( outside diameter x root diamter xsheave width)

Sheave dimension Φ508×Φ408×75 (mm) can be customized.

Feature of sheave: rubber coated aluminum sheave,middle cast steel sheave, conductor: rubber coated aluminum sheave.
