Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope

China Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope supplier
Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope supplier Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope supplier

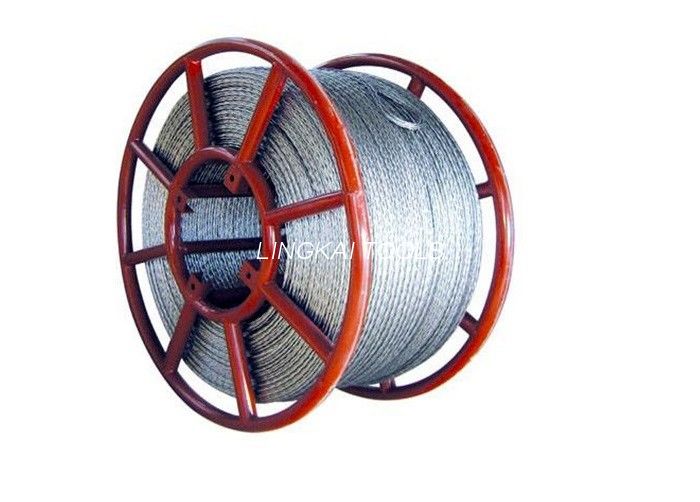

Large Image :  Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope

Product Details:

Place of Origin: NINGBO CHINA
Brand Name: Lingsheng
Certification: ISO CE
Model Number: Anti Twist Braid Rope

Payment & Shipping Terms:

Minimum Order Quantity: 1000 meters
Price: negotiable
Packaging Details: Steel Reel
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 meters / day
Contact Now
Detailed Product Description
Name: Anti Twist Braid Rope Structure: Hexagon With 12 Strands
Material: Steel For: Stringing Line
Surface Treatment: Galvanzied Diameter: 9-32mm

Hexagon Galvanized Steel Anti Twist Braid Rope for Transmission Line



Application

Hexagon Galvanized Steel Anti Twist Braid Rope is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.

Anti Twist Braid Rope Technical Data

Hexagon Galvanized Steel Anti Twist Braid Rope

Model Structure

Nominal

Dia

(mm)

Single

bundle

Dia

(mm)

Ref

Weight

(kg/100m)



Breaking

Force(KN)

Standard

Length

(m)

HL9-12×19W Hexagon with 12 strands 9 2.0 26.69 55.0 1000
HL11-12×19W Hexagon with 12 strands 11 2.5 45.73 80.5 1000
HL13-12×19W Hexagon with 12 strands 13 3.0 57.96 120.0 1000
HL16-12×19W Hexagon with 12 strands 16 3.5 82.80 158.0 1000
HL18-12×19W Hexagon with 12 strands 18 4.0 103.82 210.0 1000
HL20-12×T25Fi Hexagon with 12 strands 20 4.5 129.62 250.0 800
HL22-12×T25Fi Hexagon with 12 strands 22 4.8 147.88 320.0 800
HL24-12×T25Fi Hexagon with 12 strands 24 5.0-5.2 160.23 360.0 800
HL26-12×T25Fi Hexagon with 12 strands 26 5.5-5.6 193.71 420.0 700
HL28-12×T29Fi Hexagon with 12 strands 28 6.0 230.50 480.0 500
HL30-12×T29Fi Hexagon with 12 strands 30 6.5 272.04 540.0 500
HL20-18×19W Hexagon with 18 strands 20 4.0 159.80 300.0 800
HL22-18×T25Fi Hexagon with 18 strands 22 4.2 189.80 389.0 800
HL24-18×T25Fi Hexagon with 18 strands 24 4.8 216.20 440.0 800
HL26-18×T25Fi Hexagon with 18 strands 26 5.2 276.80 480.0 700
HL28-18×T29Fi Hexagon with 18 strands 28 5.4 301.20 580.0 500
HL30-18×T29Fi Hexagon with 18 strands 30 5.6 361.60 658.0 500
HL32-18×T29Fi Hexagon with 18 strands 32 6.0 423.00 780.0 500

Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope

Features: Hexagon Galvanized Steel Anti Twist Braid Rope for Transmission Line

The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state.It is suitable to be used in various fields which require wire rope with no rotation .The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility. Hexagon is more suitable for puller, tensioner,winch, hoisting etc.

Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope

Factory price:
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.

Feedback:
Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services.

Our Service:

1 Well trained sales team service for you.
2 Small MOQ, usually sample is available.
3 Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4 Top quality: we have professional QC team to control the quality.
5 Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity.
6 We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.

Related Working Tools Together With this kind of Anti Twist Braid Rope

Hexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid RopeHexagon Galvanized Transmission Line Stringing Tools Anti Twist Braid Rope
