Hand Operated Hydraulic Cable Crimping Tool , 10 KN Terminal Crimping Tool

China Hand Operated Hydraulic Cable Crimping Tool , 10 KN Terminal Crimping Tool supplier
Hand Operated Hydraulic Cable Crimping Tool , 10 KN Terminal Crimping Tool supplier Hand Operated Hydraulic Cable Crimping Tool , 10 KN Terminal Crimping Tool supplier

Large Image :  Hand Operated Hydraulic Cable Crimping Tool , 10 KN Terminal Crimping Tool

Product Details:

Place of Origin: NINGBO CHINA
Brand Name: Lingsheng
Certification: ISO CE
Model Number: CPO300

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: negotiable
Packaging Details: Plastic box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Contact Now
Detailed Product Description
Model: CPO300 Name: Hydraulic Crimper
Range: 16~300mm2 Crimping Force: 10 KN
Crimping Type: Hexagon Stroke: 17 Mm

Manual Hydraulic Press Crimping Tool,Hydraulic Terminal Crimping Tool



Application Manual Hydraulic Press Crimping Tool,Hydraulic Terminal Crimping Tool

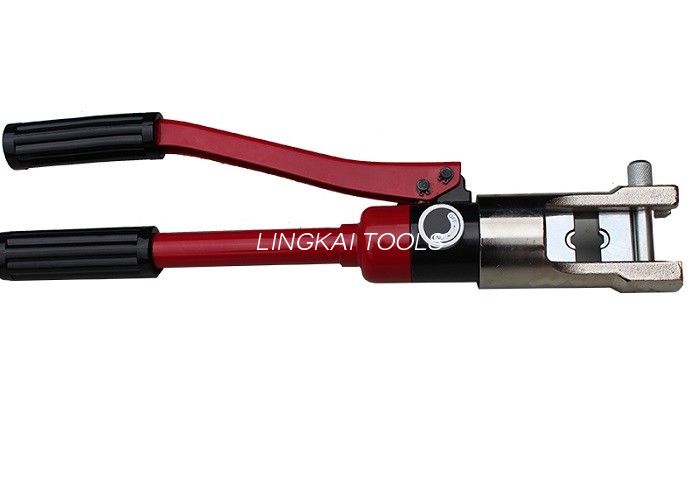

CPO-300 is hand - operated hydraulic crimping tool , designed with Bolt lock rotatable head , double speed pumping system and safety valve.
An external hydraulic pump is required to be connected with crimping head in our products range , hand , foot and electric hydraulic pumps are all available.
For CPO-300, turn release button counter - clockwise.
Besides standard crimping dies , dies customization ( different profile , different capacity) is also available.

Technical Data of CPO-300 Manual hydraulic press crimping Tool for 16-300mm2:

Crimping force is 10T, crimping type is hexagon,stroke is 17mm, weight is 4.5kg, crimping dies is

16,25,35,50,70,95,120,150,185,240,300mm2

Model

Crimping range

(mm2)

Crimping force(T) Crimeping type Stroke(mm) Weight(kg) Crimping dies(mm2)
CPO-300 16-300 10 hexagon 17 4.5

16,25,35,50,70,95,

120,150,185,240,300

Features Manual Hydraulic Press Crimping Tool,Hydraulic Terminal Crimping Tool

1) Bolt locked head design for easy cable placement and removal . open head by removing locking bolt.
2) Rotatable head for flexible operation in confined place.
3) 11 sets standard dies for precise crimping . Select and install proper dies according to specific application ( size of cable and cable connector ).
4) Double speed pumping for quick crimp. Allow rapid ram advancement under no load condition. And automatically build
sufficient working pressure when dies contact with cable.
5) With safety valve, automatically relief working pressure when complete crimping.
6) Plastic case package for easy carrying and well tool protection.
