Multi Function Hydraulic Crimping Tool / Hydraulic Busbar Cutting Punching Bending Machine

China Multi Function Hydraulic Crimping Tool / Hydraulic Busbar Cutting Punching Bending Machine supplier
Multi Function Hydraulic Crimping Tool / Hydraulic Busbar Cutting Punching Bending Machine supplier Multi Function Hydraulic Crimping Tool / Hydraulic Busbar Cutting Punching Bending Machine supplier

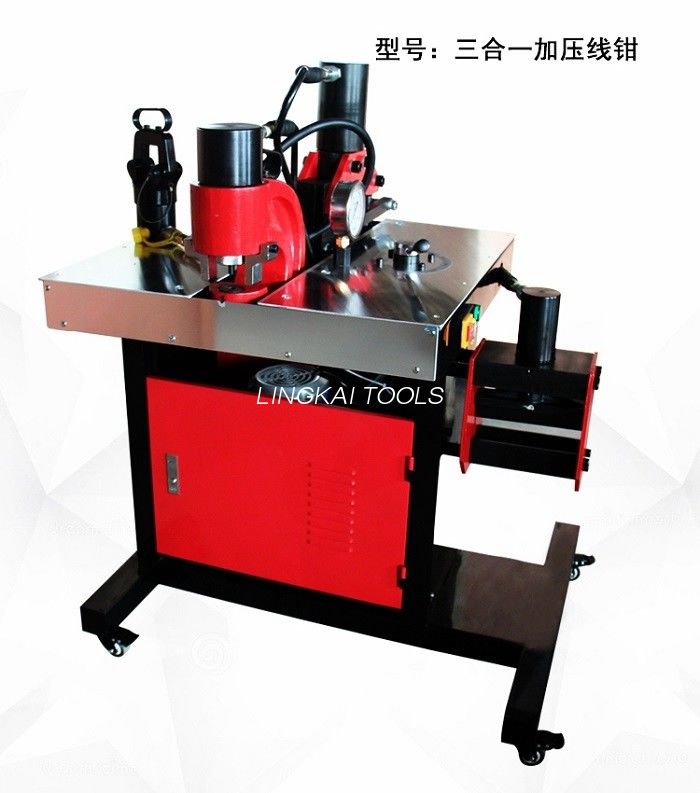

Large Image :  Multi Function Hydraulic Crimping Tool / Hydraulic Busbar Cutting Punching Bending Machine

Product Details:

Place of Origin: ningbo china
Brand Name: Lingsheng
Certification: ISO
Model Number: EPCB-301

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-4 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/week
Contact Now
Detailed Product Description
Name: Hydraulic Busbar Processing Machine Functions: Cutting Bending Punching
Punching: CH60,CH70 Bending: CB150D CB200A
Cutting: CWC150 CWC200 Approval: ISO Plant Testing Reports

Multi Function Hydraulic Busbar Processing Machine for Punching , Cutting and Bending



70Mpa Hydraulic Busbar Processing Machine for Punching , Cutting and Bending EPCB-301

Hydraulic punching device:CH60,CH70, 300KN and 350KN had die 10.5mm,13.8mm,17mm,20.5mm

Hydarulic bus-bar bender: CB150D,CB200A, it has Cu/Al plate 150*10mm, and 200*12mm

Hydraulic copper aluminum bus-bar cutter, it has CWC150,CWC200, with 200KN and 300KN cutting force, Cu/Al 150*10mm, and 200*12mm

Hydraulic electrical pump: ZCB6-5-AB, 750KW out put, 70Mpa.

Multi-function Busbar Processing Machine

This is a combination of a number of functions the body of professional design, perfect to avoid consideration of human waste, that is, provincial working hours, consistent with established operating procedures for personnel engaged in handy, resulting in high efficiency, high quality perfect work;
the form, appearance, easy to move the surface paint and rust treatment by phosphoric acid skin mold, wear-resistant impact;
Three position valve guide precision and convenient operation
hydraulic pump with hydraulic table shows the working pressure to avoid overloading,
Foot switch operation device, easy to use
environmental surface treatment table, after grinding and chrome desk, showing accurate and stable table;


Item number 06232 06231A 06231
Model EPCB-301 EPCB-401A EPCB-401
Function

with three functions,cutting,

punching and bending

punching, bending and crimping

with Four functions,cutting,

punching and bending(horizontal

and erective)

Dimension of

work table

approx.690x690x730mm approx.690x690x730mm approx.690x690x730mm

Voltage single

phase

220V50HZ 220V50HZ 220V50HZ

Rating oil

pressure

700kg/cm2 700kg/cm2 700kg/cm 2
Bending force 170KN/200KN 170KN/200KN 270KN



Bending range

150x10mm max/200x12mm max 150x10mm max/200x12mm max 125x12.5mm max
Cutting force 200KN/300KN 200KN/300KN 200KN/300KN
Cutting rang 150x10mm max/200x12mm max 150x10mm max/200x12mm max 150x10mm max/200x12mm max
Punching force 300KN/350KN 300KN/350KN 300KN/350KN

Distance from hole

to sheet side

95x110mm max 95x110mm max 95x110mm
Punch rang

φ10.5mmΦ13.8mm

φ17mmΦ20.5mm

φ10.5mmΦ13.8mm

φ17mmΦ20.5mm

3/8"(Φ10.5mm),1/2"(φ13.8mm),

5/8"(φ17mm),3/4"(φ20.5mm)

Package wooden case wooden case wooden case
