200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm

200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm
200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm 200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm

Large Image :  200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: YJD2000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/week
Detailed Product Description
Crimping Force: 200T Model: YJD2000
Item: 16105 Crimping Type: Hexa
Hight: 48mm Approx Stroke: 35mm
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm



Split-type Hydraulic Crimping Pliers Production:

Item number

16103 16103A 16104 16105 16106

Model

YJD-600 YJD-1000 YJD-1250 YJD-2000 YJD-3000

Crimping

force

60T 100T 125T 200T 300T

Crimping

range

14-55mm 14-76mm 14-76mm 14-90mm 14-100mm

Crimping

type



hexagon crimping



hexagon crimping

Stroke

24mm 24mm 35mm 35mm

Heigth

approx.370mm approx.480mm

(KG)

Weight

approx.N.W20KG

G.W30KG

approx.N.W30KG

G.W40KG

approx.N.W50KG

G.W60KG

approx.N.W85KG

G.W95KG

approx.N.W120KG

G.W130KG

Package

wooden case wooden case



200T Hydraulic Press Machine Crimping Form Hexagon Crimping Range 14-90mm

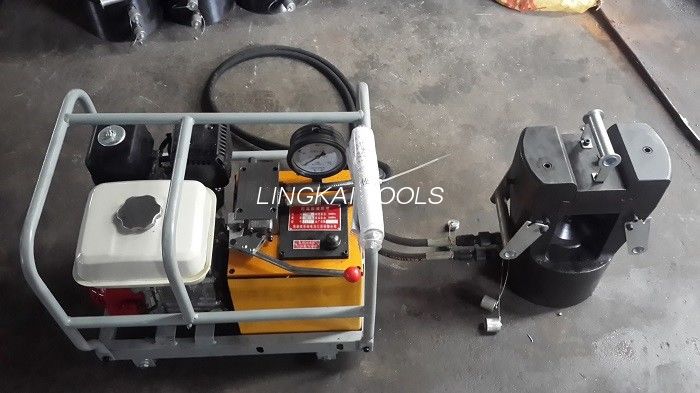

Configuration:Working with an electric hydraulic pump or a petrol power hydraulic pump ( 80 MPa )

Hydraulic pump should be the rapid super high pressure hydraulic pump (double stage pump out put)



Hydraulic Crimping Machine 200T Hydraulic Crimping Head for Crimping ACSR1440

1. Donghuan Brand

2.  200T hydraulic pressing machine

3. Die size can accoridngly make per your drawings

4. work with 80 Mpa hydraulic electrical pump or gasoline pump

5.  Hydraulic aluminum tube and steel tube pressing machine
