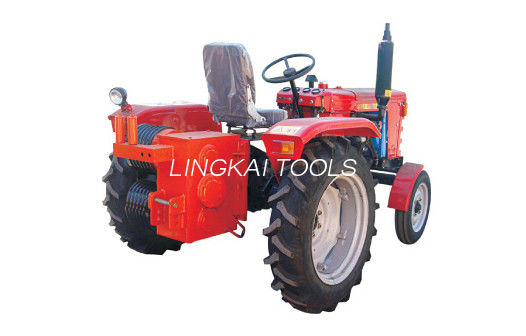

22kW Power Cable Winch Puller / Tractor Drawn Winch 304 Four Wheel Drive

22kW Power Cable Winch Puller / Tractor Drawn Winch 304 Four Wheel Drive
22kW Power Cable Winch Puller / Tractor Drawn Winch 304 Four Wheel Drive 22kW Power Cable Winch Puller / Tractor Drawn Winch 304 Four Wheel Drive

Large Image :  22kW Power Cable Winch Puller / Tractor Drawn Winch 304 Four Wheel Drive

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: 280
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Std exported packing
Delivery Time: 3 -5 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/month
Detailed Product Description
Item No: 08116 Name: Tractor Drawn Winch
Power: 22kW Model: SX4-V1
Suitable For: Power Line, Tower Line, Traction Line Tractor Type: 304 Four-wheel Drive
High Light:

portable capstan winch

,

gas powered winch

Model 304 Tractor Winch for Pulling Good Adjustability Model 280 Tractor Pulling Machine



Tractor-drawn Winch

Item number

08126 Power 22KW Model SX4-V1
Gear reversalⅠ
Traction force(KN) 40 30 20 -
Traction speed(M/MIN) 12 21 38 11
bottom of groove diameter Φ300mm
Number of groove 6
(KG)Weight 1740kg
 outline size 2900x14000x1440mm



Configuration:

Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.

Explain:It is made of four-wheel drive 304 type tractors. Can use a two-wheel drive 300 tractor(Item No. 08127)

Main uses:
1, the power line construction in the retractable wire.
2, the traction of the whole tower erection, also lifting heavy objects.
3, rear can hang trailer transport tools
