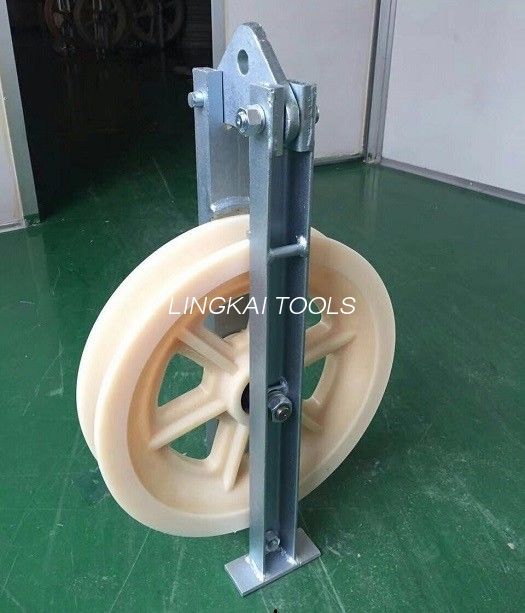

822mm MC Nylon Sheave Conductor Stringing Blocks

822mm MC Nylon Sheave Conductor Stringing Blocks
822mm MC Nylon Sheave Conductor Stringing Blocks 822mm MC Nylon Sheave Conductor Stringing Blocks

Large Image :  822mm MC Nylon Sheave Conductor Stringing Blocks

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO CE
Model Number: 822 mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: get the latest
Packaging Details: Standard shipping packing
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets /month
Detailed Product Description
Description Of Product: Transmisson Line Conductor Stringing Blocks Inner Diameter Of Sheave: 710mm
Outer Diameter Of Sheave: 822mm Width Of Sheave: 110mm
Material Of Sheave: MC Nylon Or Steel Conductor Diameter: Up To 36mm
High Light:

MC Nylon Sheave Conductor Stringing Blocks

,

Steel Sheave Conductor Stringing Blocks

,

822mm Sheave Pulley Block

Famous Lifting Cable Pulley Block Large Diameter Conductor Pulley Block





Product Description

We are the leading and biggest manufacture for stringing equipment and tools in China. We can provide whole set of equipment and tools for overhead transmission line stringing up to 1000 KV. Our products have exported to more than 40 countries in the world.



Three sheaves Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10102 SHS508 300-400 40 61 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10105 SHSLN508 300-400 40 47
10122 SHS660 400-500 40 106
10125 SHSLN660 400-500 40 92
10107 SHSQN508 300-400 40 43 Nylon, optional can be lined with neoprene
10127 SHSQN660 400-500 40 76
10132 SHSQN750 500-600 60 98
10142 SHSQN822 600-700 60 110
10152 SHSQN916 700-800 75 126
10166 SHSQN1040 800-900 105 200

Application: It is suitable to string two or three stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.



Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.



822mm MC Nylon Sheave Conductor Stringing Blocks 0

822mm MC Nylon Sheave Conductor Stringing Blocks 1
