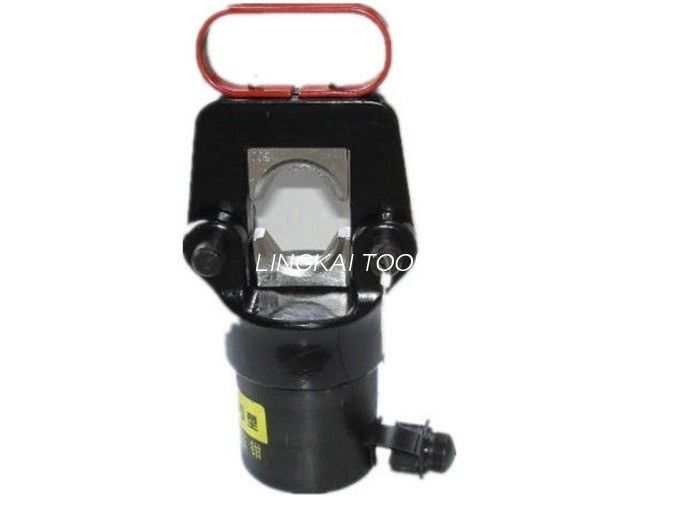

Cable Lug Hydraulic Crimping Pliers , FYQ-630 Single Hydraulic Crimping Head

Cable Lug Hydraulic Crimping Pliers , FYQ-630 Single Hydraulic Crimping Head
Cable Lug Hydraulic Crimping Pliers , FYQ-630 Single Hydraulic Crimping Head Cable Lug Hydraulic Crimping Pliers , FYQ-630 Single Hydraulic Crimping Head

Large Image :  Cable Lug Hydraulic Crimping Pliers , FYQ-630 Single Hydraulic Crimping Head

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: FYQ400,630
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Detailed Product Description
Model: FYQ400,630 Crimping Range: 150-630mm2
Crimping Force: 50 T Stroke: 25T
Weight: 15,4 Kg Tube: Single
High Light:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

FYQ-630 Hydraulic Crimping Tool Crimping Pliers,Hydraulic Crimping Head



FYQ-630 Hydraulic Crimping Tool Crimping Pliers,Hydraulic Crimping Head

It has the universal head with quick coupling ,rotates 369dedree,flip top style.

For connecting to hydraulic drive units with 700Mpa operating pressure for best possible crimping,cutting and punching results

Hydraulic crimping tool: Fyq-630

Crimping range:150-630 mm2

Crimping force:316KN

Stroke:25mm.

Technical Data FYQ-630 Cable Lug Hydraulic Crimping Plier,Hydraulic Crimping Head

Item No: FYQ-630
Crimping range: Cu 150-630mm2
Crimping force: 316KN
Stroke: 25mm
Crimping type: hexagon crimping
Height: approx220mm
Weight: approx.10.8kg
Package: Steel case
ACCESSORIES
Crimping dies: 150,185,240,300,400,500,630 mm2
Note: it can match hand pump CP-700

FYQ-400 Hydraulic Crimping Tool Crimping Pliers

Split hydraulic crimping head can work with hydraulic pump. The working head is manufactured by CNC machine, it secures high precision.

It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.

Technical Data FYQ-400 Hydraulic Crimping Tool Crimping Pliers

Crimping range 16-400mm2
Crimping force 16T
Stroke 22mm
Crimping type hexagon crimping
Accessories 16,25,35,50,70,95,120,150,185,240,300,400mm2

They are all specially designed for inside and outside power transmission and distribution project, various kinds of connecting terminals, overhead and underground cable.

1. it is suitable for outside and inside project of the distributor house,it is the special tools for all kinds of connecting and kinds of building over head cable.
2. it pressed tightly on 10kv-500kv high voltage cable casing pipe,clips nared ends hexagon shape.
3. we will develop the titanium alloy material to decrease the work deal.
4. welcome to order special specification tools.
