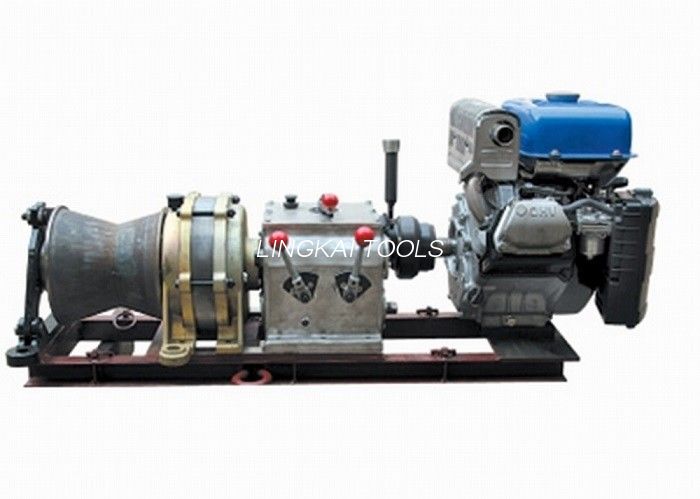

Cable Pulling Engine Powered Winch / 5 Ton Gasoline Planetary Gearbox Winch

Cable Pulling Engine Powered Winch / 5 Ton Gasoline Planetary Gearbox Winch
Cable Pulling Engine Powered Winch / 5 Ton Gasoline Planetary Gearbox Winch Cable Pulling Engine Powered Winch / 5 Ton Gasoline Planetary Gearbox Winch

Large Image :  Cable Pulling Engine Powered Winch / 5 Ton Gasoline Planetary Gearbox Winch

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: JJM-5BQ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/day
Detailed Product Description
Model: JJM-5BQ Name: Planetary Gearbox Winch
Engine: Gasoline Driven Approval: ISO
Apply: For Cable Pulling After Service: Available
High Light:

gasoline powered winch

,

gas powered winch

5 Ton Gasoline Planetary Gearbox Winch For Cable Pulling



Application

5 Ton Gasoline Planetary Gearbox Winch is mainly used for erecting air high-voltage transmission lines and the laying of underground cables,gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device,in the opposite direction are positive ,the braking action.

Winch can be modified as per requirement, such as changing curve capstan into straight even

cylindrical shape and coming with steel rope.



Features

1) Speedy and Efficient

2) Safe and Reliable

3) Compact structure

4) Widely Used

5) Light Weight



Technical Data of 5 Ton Gasoline Planetary Gearbox Winch

Model Gear Pulling Force(KN) Pulling Speed(m/min) Dimension(mm) Weight(kg)
JJM-5BQ Fast 9 24 1100*525*600 130
Mid 15 14
Mid 30 9
Slow 50 5

Cable Pulling Engine Powered Winch / 5 Ton Gasoline Planetary Gearbox Winch 0
