Double Speed Powerful Hydraulic Crimping Tool Super High Pressure Hydraulic Pump

Double Speed Powerful Hydraulic Crimping Tool Super High Pressure Hydraulic Pump
Double Speed Powerful Hydraulic Crimping Tool Super High Pressure Hydraulic Pump Double Speed Powerful Hydraulic Crimping Tool Super High Pressure Hydraulic Pump

Large Image :  Double Speed Powerful Hydraulic Crimping Tool Super High Pressure Hydraulic Pump

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: YA80Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Detailed Product Description
Model: YA80Q Name: Hydraulic Pump Station
Engine Brand: Honda Engine: Gasoline
Max Pressure: 94 Mpa Rated Pressure: 80 Mpa
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

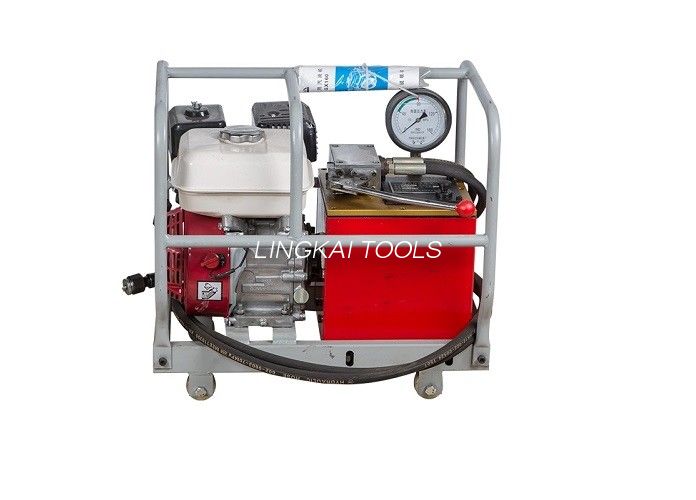

Double Speed Super High Pressure Hydraulic Pump Station With HONDA engine



Double speed Super High Pressure Hydraulic Pump Station with HONDA engine

It is applicable to provide power. It is used to provide power for the cutting tool, the hydraulic compressor, punching machine and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.

Technical Data of Double speed Super High Pressure Hydraulic Pump Station with HONDA engine

Model Rated Oil Pressure Max Oil Pressure Engine Rated Flow(L/min)
High Pressure Low Pressure
YA-80Q 80Mpa 94Mpa Honda GX160 5.5HP 2.05Mpa 11.02Mpa

Main component :

Double Speed Super High Pressure Hydraulic Pump Station With HONDA Engine

1. Engine : HONDA Gas Engine

2. Main variable pump and main motor :HONDA

Technical Data of Super high pressure double speed gasoline/petrol hydraulic pump station

Model Rated Oil Pressure Max Oil Pressure Engine Rated Flow(L/min)
High Pressure Low Pressure
YA-80Q 80Mpa 94Mpa LIFAN 5.5HP 2.05Mpa 11.02Mpa

Main component :

1. Engine : LIFAN Gas Engine

2. Main variable pump and main motor :LIFAN

Technical specification below for your reference:

Model Engine Power Rated Pressure(Mpa) Max Pressure(Mpa) Rated Flow(L/min) Weight
High Pressure Low Pressure
YA-80Q Honda GX160 5.5HP 80 94 2.05 11.02 56KG
YA-80C Diesel Engine 4.0HP 80 94 2.05 11.02 65KG
YA-80D Electric Engine 3.0KW 80 94 1.60 8.00 45KG
