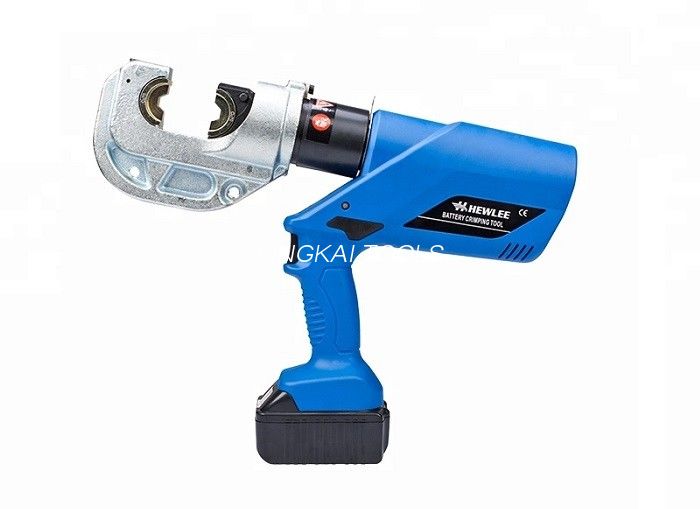

Electric Hydraulic Crimping Tool 120KN HL-400 Battery Powered Crimping Tools

Electric Hydraulic Crimping Tool 120KN HL-400 Battery Powered Crimping Tools
Electric Hydraulic Crimping Tool 120KN HL-400 Battery Powered Crimping Tools Electric Hydraulic Crimping Tool 120KN HL-400 Battery Powered Crimping Tools

Large Image :  Electric Hydraulic Crimping Tool 120KN HL-400 Battery Powered Crimping Tools

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: HL400
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Plastic box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 pcs / month
Detailed Product Description
Model: HL400 Name: Hydraulic Crimping Piler
Power: Battery Using: Crimping Wire Rope
Crimping Cycle: 10-15s Voltage: 18V
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

HL-400 Battery Powered Crimping Tools Electric Hydraulic Crimping Plier



Technical Data HL-400 Battery Powered Crimping Tools Electric Hydraulic Crimping Plier:

Crimpin range is 16-400mm2. crimping force 12T,crimping type is hexagon crimping,stroke is 42mm, crimping charge is 170 times, crimping cycle is 10-15s, depend on the size of cable, voltage is 18V, capacity is 3.0Ah, chargeing time is 2hours, packing in aluminum alloy case, charge dies is

16,25,35,50,70,95,120,150,185,240,300mm².

Crimping range 16-400mm²
Crimping force 120KN
Crimping type Hexagon crimping
Stroke 42mm
Crimp charge 170times(Cu 150mm²)
Crimping cycle 10-15s(depend on the size of cable)
Voltage 18V
Capacity 3.0Ah
Charging time 2 hours
Package Aluminum alloy case
Charging die

16,25,35,50,70,95,120,150,

185,240,300mm²

Accessories:
Battery 2pcs
Charger 1pcs
Sealing ring of cylinder 1set
Sealing ring of safety valve 1set
Shoulder strap 1pcs









































Function:

HL-400 Battery Powered Crimping Tools Electric Hydraulic Crimping Plier

1.18 V charging type hydraulic pressure meet clamp
2. Suitable for distribution homework crimping terminals
3. The industry of lightweight design charging type tools
4. And infinitely cariable speed mortors
5. Can a single hand poeration
6. Super lightweight high durability
7. TO set pressure automatic relief
8. Head can rotate applicable to different places of work
9. small volume,light weight,used for crimping copper aluminum wire and cable connection terminals
10. Pressure can rotate 180 degrees, the joint operation more convenient, comfortable
11. Mechanical relief can ensure that the quality of the crimping.

Electric Hydraulic Crimping Tool 120KN HL-400 Battery Powered Crimping Tools 0Electric Hydraulic Crimping Tool 120KN HL-400 Battery Powered Crimping Tools 1
