Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller

Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller
Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller

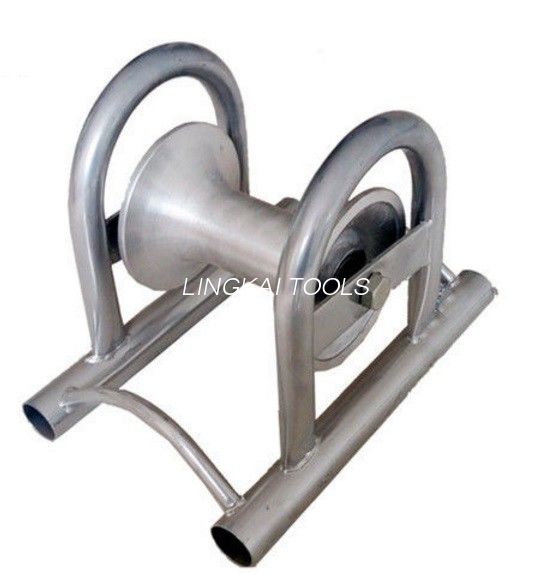

Large Image :  Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller

Product Details:
Place of Origin: NIGNBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHLG
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Detailed Product Description
Frame: Bridge Roller Rated Load: 12kn
Range: <=150mm Weight: 4.8kg
Size: 160*165mm Using: Underground Pipe Laying
High Light:

cable pulling accessories

,

underground cable installation equipment

Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller



Technical Data

Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller: it is rated load 12KN, with the 100%aluminum alloy first class meterail made, to make sure the best strength, and durable long lift using, it range to apply<=150mm cable diameter, and if you like to meet your especially demands on the sizes, you can freely ask us to manufactory for you, the standard sizes are as below:

Product NO. Type NO . Rated Load( KN) Range (mm) Specifications(mm) weight(kg)
80435 SHLG-1002 12 ≤Φ150 160*165 4.8
80436 SHLG-1002N 12 ≤Φ150 160*165 4.5
80437 SHLG-10021 12 ≤Φ150 140*160 4.8
80438 SHLG-10021N 12 ≤Φ150 140*160 4.5



Galvanzied Aluminum Roller Underground Tools Straight Line Cable Roller 0

Name:Cable Rollers, cable pulley, Cable Sheaves, Cable Drum Jacks, direct deal, corner roller

Detailed Description:Used in the cable changing the direction place protection cable not to wear.

Features:Divides into according to the material quality: Alloy wheels and MC nylon wheels.

Notes:We can design the roller sizes especially for your requirements.
