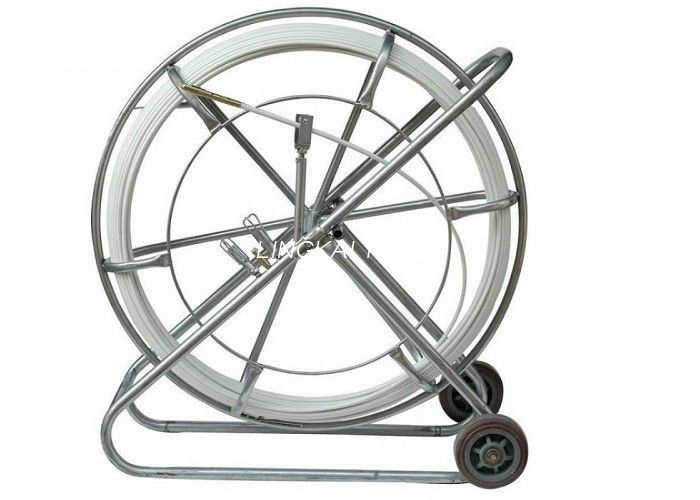

High Strong Fiberglass Conduit Rodder 4~16 Mm Steady / Durable To Carry

High Strong Fiberglass Conduit Rodder 4~16 Mm Steady / Durable To Carry
High Strong Fiberglass Conduit Rodder 4~16 Mm Steady / Durable To Carry High Strong Fiberglass Conduit Rodder 4~16 Mm Steady / Durable To Carry

Large Image :  High Strong Fiberglass Conduit Rodder 4~16 Mm Steady / Durable To Carry

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 7days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Detailed Product Description
Item: Cable Pulling Tools Origin: NINGBO
Name: Fiberglass Duct Rod Color: White, Red, Yellow...
Rod Dia: 4~16 Mm Length: Per Customized
High Light:

conductor pulling tools

,

stringing pulling tools

High Strong FRP Electrical Cable Pulling Rodder / Fiberglass Cable Duct Rod



How to select rod?

Which is the right rod diameter for any given application? The rod selection is usually governed by several factors including: (the size, the distance, the numer and tightness of bends) of ducting!



If the ducting is already occupied by cable, when being pushed through the duct, any rod will tend to form “sine waves”, hitting the wall of the duct at certain intervals. Each time the rod comes in contact with the wall of the duct, it causes friction. The friction will build and eventually prevent the rod from being pushed any further. Small rod in large duct will make more frequent contact with the ducting; the same rod in smaller duct will make less frequent contact and therefore less friction so it can be pushed further. Large rod in small ducting is a good situation, but reduced flexibility of the rod may cause increased friction in the tighter bends.

Rods more selling points

  • Steady and durable
  • Equip with bracket and easy to carry
  • Not easy to break and ageing resistance
  • Good compression resistance capacity and proper structure
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

High Strong Fiberglass Conduit Rodder 4~16 Mm Steady / Durable To Carry 0

Cable Push Puller Rod Specificaitons

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

Other Electrical Cable Pulling Tool:

High Strong Fiberglass Conduit Rodder 4~16 Mm Steady / Durable To Carry 1
