Hydraulic Pipe Bending Underground Cable Tools 18kg Weight 180mm Stroke

Hydraulic Pipe Bending Underground Cable Tools 18kg Weight 180mm Stroke
Hydraulic Pipe Bending Underground Cable Tools 18kg Weight 180mm Stroke Hydraulic Pipe Bending Underground Cable Tools 18kg Weight 180mm Stroke

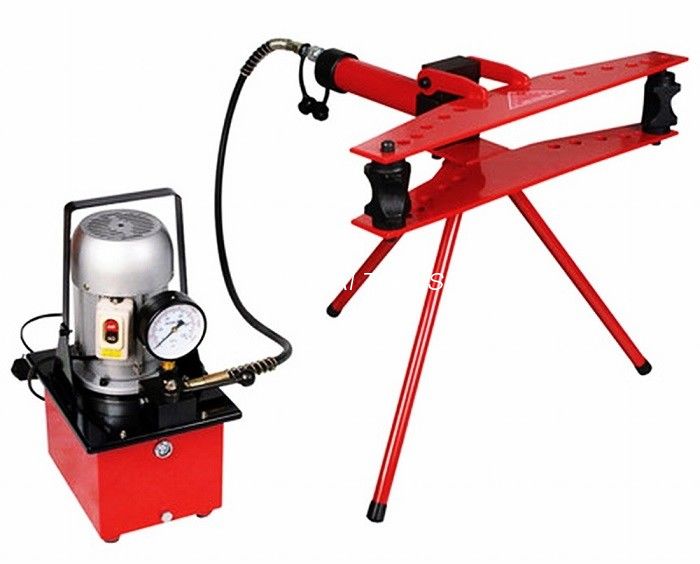

Large Image :  Hydraulic Pipe Bending Underground Cable Tools 18kg Weight 180mm Stroke

Product Details:
Place of Origin: Ningbo china
Brand Name: Linkai
Certification: ISO
Model Number: SWG
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-4 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/day
Detailed Product Description
Name: Hydraulic Pipe Bender Model: CPB-1
Out Put: 100kn Stroke: 180mm
Weight: 18kg Work With: Hydraulic Pump
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Busbar Bending Machine , DWG-3D Electric Hydraulic Pipe Bender with Pump





Hydraulic Pipe Bender

Item number

06251 06252 06253 06254 06255
Model CPB-1 CPB-2 CPB-3 CPB-4 CPB-5

Cutting force

100 250 320 380 380

(MM)

Stroke

180 250 320 380 380
Wall thickness 2-5 2.5-5 2.5-5 2.5-6 2.5-6

Weight

18 40 85.5 128.5 177.5

(rad)

Bending angl

π/2≤a<π π/2≤a<π π/2≤a<π π/2≤a<π π/2≤a<π



(mm)

Pipe diameter

Φ13 Φ16

Φ19 Φ22

Φ28 Φ34

Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ75.5 Φ89



Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ75.5 Φ89

Φ108

Φ22 Φ28

Φ34 Φ42

Φ48 Φ60

Φ75.5 Φ89

Φ108 Φ114



Configuration:  It is suitable for bending and forming of galvanized water pipes, thick steel pipes, conductor pipes and gas pipes.

CPB model need to be equipped with a hydraulic pump

Hydraulic Pipe Bending Underground Cable Tools 18kg Weight 180mm Stroke 0
