Output 30 Ton Hydraulic Metal Hole Punch 95mm Throat Diameter High Performance

Output 30 Ton Hydraulic Metal Hole Punch 95mm Throat Diameter High Performance
Output 30 Ton Hydraulic Metal Hole Punch 95mm Throat Diameter High Performance Output 30 Ton Hydraulic Metal Hole Punch 95mm Throat Diameter High Performance

Large Image :  Output 30 Ton Hydraulic Metal Hole Punch 95mm Throat Diameter High Performance

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CH60
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/day
Detailed Product Description
Name: Hydraulic Puncher Model: CH60
Punching Force: 30T Throat Diameter: 95mm
Apply: Punching Iron And Copper Moulds: 4 Sets
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Output 30 Ton CH-60 Hydraulic Puncher Hole Punching Tool Hydarulic Tools



Tools Introduction

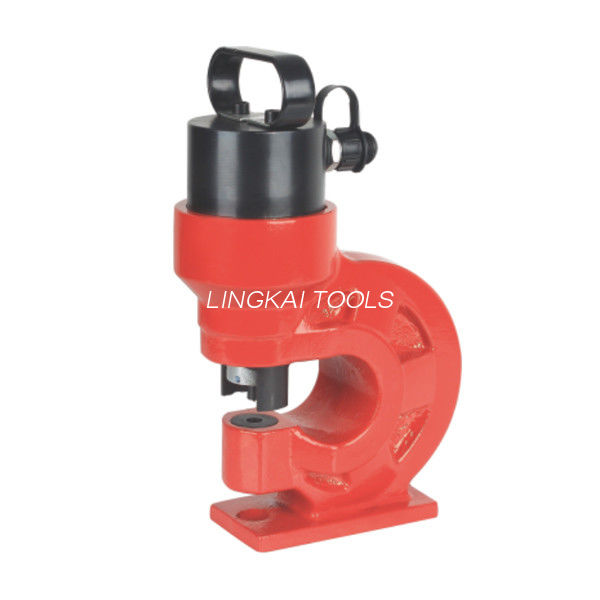

Hydraulic Punching Tools CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 8mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.



Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching CH-60

Item number

Model

(KN)

Punching

force

(MM)

Punching

thickness

(MM)

throat

diameter

(MM)

Hight

(KG)

Weight

(MM)

specification of

matching mold

hydraulic pump

06243 CH-60

300

iron6

copper10

95 350 19

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06244 CH-70 350

iron10

copper12

110 360 35

Φ10.5,Φ13.8,

Φ17,Φ20.5

CP-700/ZCB6-5-A3
06248 CH-80

500

iron16

copper20

115 340 45

Φ16,Φ18,

Φ22,Φ25

ZCB6-5-AB
06249 CH-100 1000

iron18

copper20

135 400 150

Φ25,Φ28,

Φ32,Φ36

ZCB6-5-AB

Explain:The mold size can be customized according to the requirements of the user
