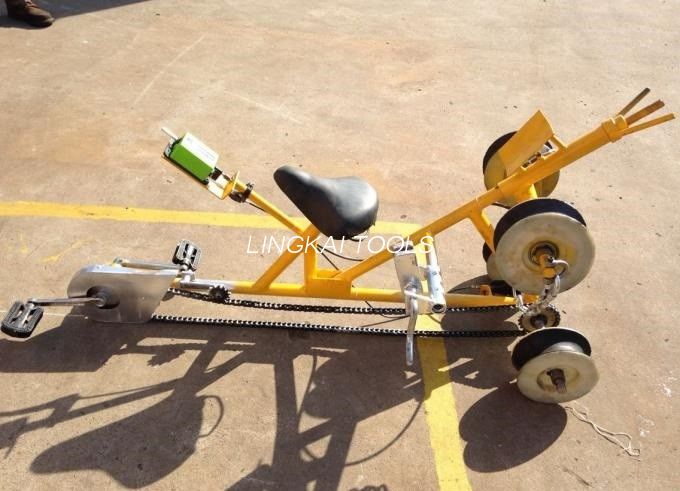

Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors

Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors
Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors

Large Image :  Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SFS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets / month
Detailed Product Description
Model: SFS2 Name: Cart For Overhead Line
Conductor: Two Bundle Load: 1.5 KN
Type: Horizontal, Vertical Max Through Dia: 70 Mm
High Light:

transmission line tool

,

transmission tools and equipment

Inspection Trolleys And Overhead Line Bicycles For Two Bundle Conductors



Description

Inspection trolleys, and overhead lines bicycles for two conductor, two condutor line cart,It is used to install accessories and overhaul on two bundle conductor,ect.This overhead line bicycles, has two types, Horizontal, and Vertical, rated load are1KN and 1.5KN, suit to maximum diameter from 40mm to 70mm, conductor distance can reach to max 500mm, it is easy operation during the power construction.Before you use it, please kindly confirm the distance between conductors before proceeding production.



By the way, we are making the single bundle conductor cart, three bundle conductor trolley, as well as four and eight bundle conductor, in the same time, freely ask us if you are interested.

Use

Inspection Trolleys And Overhead Line Bicycles For Two Bundle Conductors is to mount accessories and to overhaul.

Notes

Inspection Trolleys And Overhead Line Bicycles For Two Bundle Conductors:Please explain clearly in writing the distance between conductors.

Technical data of Inspection trolleys and overhead line bicycles for two bundle conductors

Model Rated load(KN) Maximum through diameter(mm) Conductor distance(mm) Weight(kg) Remark
SFS2 1 40 400 34 Horizontal
SFS2 1 40 450 36 Horizontal
SFS2 1 40 500 38 Horizontal
SFS400 1 40 400 40 Vertical
FC400/450S 1 60 400-450 34 Horizontal
SFS1-400 1.5 70 400 38 Horizontal
SFS1-450 1.5 70 450 40 Horizontal

Inspection Trolleys And Overhead Line Bicycles/carts For Four Bundle Conductors

UsesTo mount accessories and overhaul on four conductor and so on.

Notes

Please specify the wire spacing when ordering.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Technical Data of Inspection trolleys and overhead line bicycles/carts for four bundle conductors

Model Rated load(KN) Maximum through diameter(mm) Conductor distance Weight(kg)
SFS1 1.5 70 450 40
SFS1 1.5 70 500 40
SFS3 1 40 500 36
SFS3 1 40 450 38
SFS3 1 40 500 40
FSC400/450 1 60 400-450 43.5

Inspection Trolleys And Overhead Line Bicycles Application

Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors 0

Our Service:

1 Well trained sales team service for you.
2 Small MOQ, usually sample is available.
3 Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4 Top quality: we have professional QC team to control the quality.
5 Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity.
6 We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment



Other Inspection Trolleys and Overhead Line Bicycles Type

Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors 1Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors 2Overhead Line Bicycles Transmission Line Tool For Two Bundle Conductors 3
