Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder

Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder
Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder

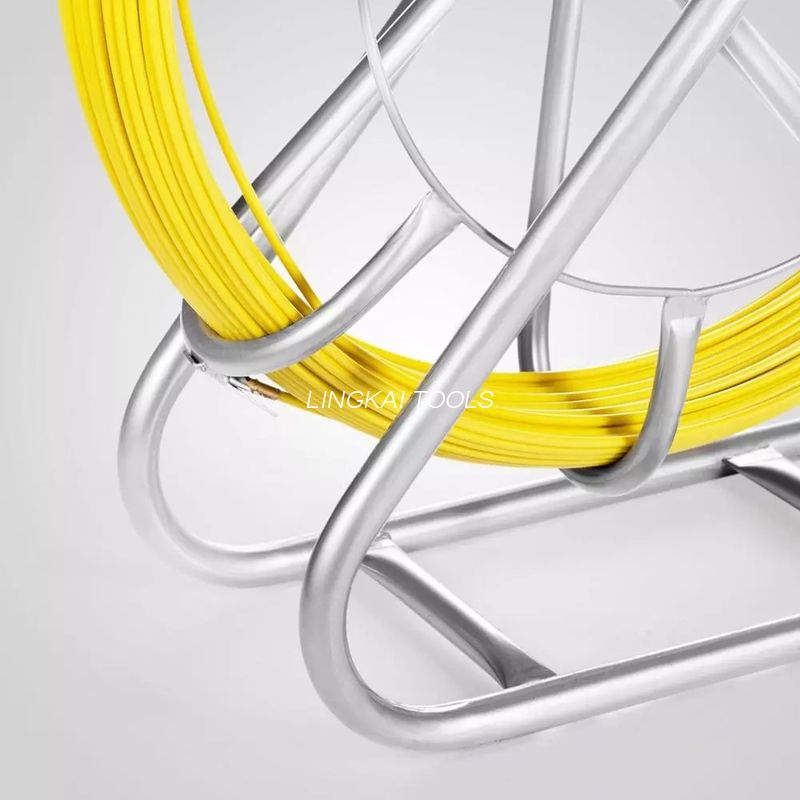

Large Image :  Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: Duct Rodder
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/month
Detailed Product Description
Name: Cable Rodder Apply: Pipe Cleaning
Color: Customized Length: 200m
Diameter: 9mm Site: Conduit
High Light:

electrical wire pulling tools

,

conductor pulling tools

Cable Rodder Apply for Cable Laying and Pipeline Cleaning in Conduit.



Cable rodder works to thread a cable and wire through conduit quickly and easily. They are very common when it comes to the installation of cable. They work simply and make it easier to thread cable through ducts. These devices can help for a range of underground tasks, including threading lines, pulling cables, locating ducts, and cleaning; they are extremely useful.

This cable rodders help you saving time and labor. It is easy to operat and needs no special skills.



Duct Push Rodder

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

What kind of cable rodder should be consider?

Commonly, there are two kind of cable rodder: fiberglass cable rodder and plastic cable rodder.

  • Fiberglass cable rod come with glass fibers as the mainly material. The manufacturing process for glass fibers suitable for reinforcement uses large furnaces to gradually melt the silica sand, limestone, kaolin clay, fluorspar, colemanite, dolomite and other minerals to liquid form. Fiberglass cable rods show strong high tensile strength and elasticity, when passing through narrow conduit rather than coiling together(see Figure 1)
  • Plastic cable rod adopt the plastic as the only material. Plastic is a thermoplastic silky material, see also polyamide or PA, that can be melt-processed into fibers, films or shapes.Plastic cable rodder mainly apply to short distance and straight conduit, for its unsatisfactory rigidity. It is low price and economical but lack of good friction and durability as its simple structure.(see Figure 2)

Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder 0 Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder 1

Figure 1: Fiberglass cable rodders pass through narrow conduit rather than coiling together.

Figure 2: Plastic cable rodder mainly apply to short distance and straight conduit.



Decades of in-field use have proven this rodder cable with fiberglass been of high visibility fiberglass rod material have the ideal combination of the mechanical properties of tensile strength, modulus, stiffness and bending behavior.

Pipe Cleaning Cable Pulling Equipment , Length 200m Cable Duct Rodder 2
