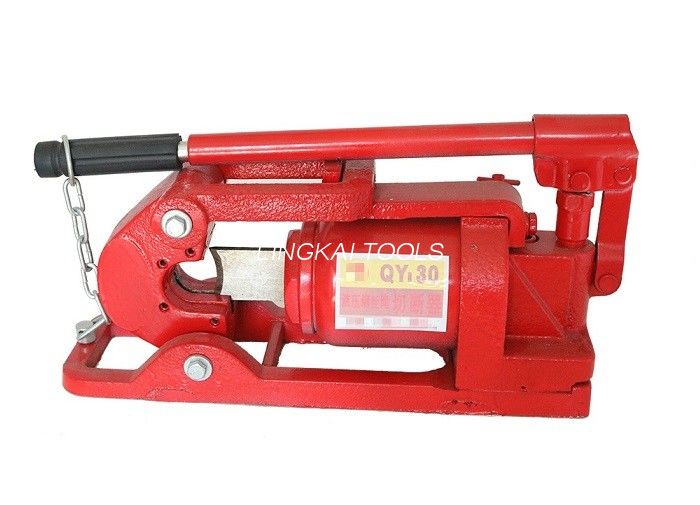

QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter

QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter
QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter

Large Image :  QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: QY30
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000sets/month
Detailed Product Description
Name: Hydraulic Cable Cutter Model: QY30
Out Put: 7.5T Oil L: 0.19L
Cutting Range: <30mm Dia Apply: Cutting Wire Rope
High Light:

cable pulling accessories

,

underground cable installation equipment

QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter



Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter Main Parameter:

Model QY30 QY48
Cut biggest diameter of wire rope 30mm 48mm
Piston proceeding ≥38mm ≥60mm
Power proceeding 10mm 8.8mm
The biggest shear force 7.5Ton 20Ton
Oil capacity 0.19L 0.3L
Hand shank force ≤25kgf ≤39kgf

Hydraulic Steel rope Cutter

1.Designed for manually cutting wires with hydraulic power.

2.Gives a clean cut with a few strockes of the handle without requiring any outside power.

3.Can be carried to the job and placed anywhere, no firm base is required.Essential for cutting and splicing wire rope .

4.Be sure to unscrew the die plug before use and to retighten it after use .

Products Shows

QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter 0 QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter 1 QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter 2

The wire rope clamp cutter is used for oil field, gas field, and coal field, in which fire can not be used or without oxygen and electric power. It is used for cutting rope.It is made with the hydraulic transmission technology which push alloy steel cutlery to cut wire rope.

1) Excellent material;

2) Thich blade;

3) Steady and close hydraulic pressure.

4) No-slip handle

5) Easy operation

6) Great crimp force, saving effort.

QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter 3 QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter 4 QY30 Labor Saving Hand Operated Hydraulic Steel Wire Rope Cutter 5
