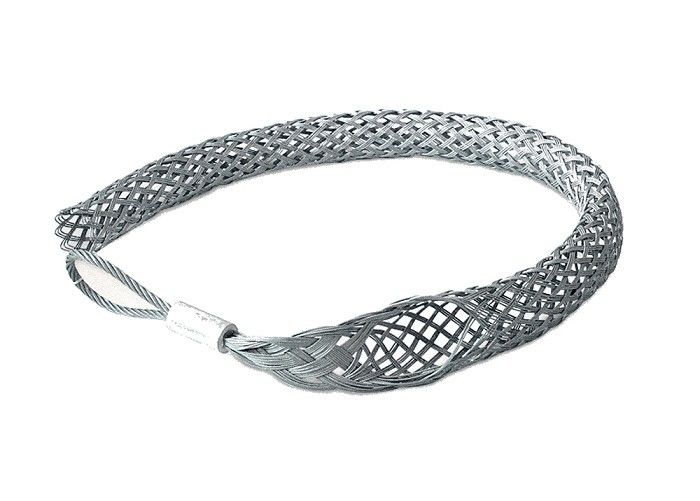

SLW Model Electrical Cable Pulling Tools Flexible Wire Mesh Cable Grip

large.img.alt
small.img.alt small.img.alt

Large Image :  SLW Model Electrical Cable Pulling Tools Flexible Wire Mesh Cable Grip

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLW
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5- 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Model: SLW Cable: Dia12-16mm
Load: 10 KN Weight: 0.8 Kg
Name: Pulling Grip Feature: Flexible
High Light:

conductor pulling tools

,

stringing pulling tools

SLW Model Galvanized Wire Mesh Hoisting Cable Grips With Good Fexibility



Cable Grips Cable Pulling Rope Socks

SLW Model Galvanized Wire Mesh Hoisting Cable Grips With Good Fexibility

The cable is first covered, and then pulled by manual or lifting tools, so as to achieve the purpose of wiring and protecting the cable. The cable can also be hung with a net (note that the net body of the net sleeve is gridding, so that it becomes tighter and tighter. It is very convenient to use if you want to loosen only by pushing in the opposite direction of the cable.

Details Of Cable Grip

SLW Model Galvanized Wire Mesh Hoisting Cable Grips With Good Fexibility

Item Number Model Diameter of Suitable Cable (mm) Rated Load (kN)
21361 SLW16 Φ12~16 8
21362 SLW20 Φ16~20 10
21363 SLW25 Φ20~25 12
21364 SLW37 Φ25~37 18
21365 SLW50 Φ37~50 28
21366 SLW60 Φ50~60 15
21367 SLW80 Φ60~80 20
21368 SLW100 Φ80~100 25
21369 SLW120 Φ100~120 30
21370 SLW150 Φ120~150 30

Galvanized Wire Mesh Hoisting Cable Grips With Good Fexibility has below three advantages:

1. High strength galvanized steel  wire rope, hot dip galvanzied steel wire rope more durable quality assurance.

2. High strength galvanized steel pull head, the inlet press is pressed to prevent the shedding.

3. The normal kind length is 1.7m, if you wanna the increase length, pls show us the demans, we can make.

4. This cable nets, is used to protect the cable from being damaged during the operation, suitable for releasing and gripping all kinds of cables, pass through the wheels and tension pulley.

Cable grips

SLW Model Electrical Cable Pulling Tools Flexible Wire Mesh Cable Grip,Cable Pulling Grips is also known as:cable nets,intermediate nets,wire nets,cable nets,power nets,cable nets,fiber nets, ground nets.

SLW Model Electrical Cable Pulling Tools Flexible Wire Mesh Cable Grip 0SLW Model Electrical Cable Pulling Tools Flexible Wire Mesh Cable Grip 1

Packing and delivery

Packing in carton or customized. Delivery with in 7 days after the payment

SLW Model Electrical Cable Pulling Tools Flexible Wire Mesh Cable Grip 2

Please click below picture to find the video about application method

SLW Model Electrical Cable Pulling Tools Flexible Wire Mesh Cable Grip 3
