Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor

Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor
Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor

Large Image :  Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: DSJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton or wooden case
Delivery Time: 8 - 15work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets / month
Detailed Product Description
Name: Cable Converyor Engine: Electric
Using: Cable Pulling Model: DSJ-150
Cable Dia: 30~200mm Weight: 150kg
High Light:

electrical wire pulling tools

,

stringing pulling tools

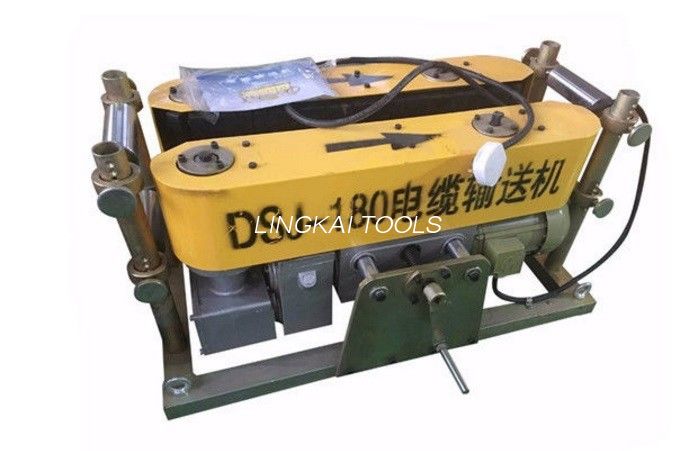

DSJ-150 Cable Pulling Machine Crawler Cable Conveyor With Electrc Engine

Cable Pulling Machine Crawler Cable Conveyor With Electric Engine Technical Data

Model Type DSJ-150 DSJ-180
Line pulling(KGS) 700 800
Pulling Speed(m/min) 8 6
Electric motor 1.1KW *2 1.5KW * 2
Oversize dimension 950*500*400 1020*590*400
Weight(KGS) 150 180-200
Cable diameter Φ30 - 180 mm Φ30 - 200 mm
Transimission I=45 I=60
Rubber sheet thickness 25mm 25mm

Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor 0

Crawler Cable Conveyor Usages

DSJ series product is an electric machine for laying power cables (or communication cables).

Wire Cable Laying Machine Features

DSJ-150 Cable Pulling Machine Crawler Cable Conveyor With Electric Engine

1. The two vertical shafts drive the transmission force and gravity respectively in two directions of the cable to protect the insulation of the cable.

2. The transmission force is transmitted through the compound caterpillar, and cater pillar adopts high strength wear-resisting rubber, which make the power force uniform and durable.

3. The machine is equipped with adjustable roller, which is very convenient.

4. The upper part of the machine can be fitted with a hinge wheel, which can be used for small power traction.

5. The machine has low mechanical noise, small temperature rise and easy maintenance.

6. Support products can be provided by user, like –DSJseries electrical control system (total control box, control box) and winding wheel etc.

Cable Converying Machine, cable conveyor Advantages

1. Saving a lot of labor

2. Improving working conditions

3. Reducing labor intensity

4. Improving work efficiency

5. Ensuring safety

Application Show Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor

Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor 1



Please click below picture to find the video about application method

Yellow / Red Electrical Cable Pulling Tools DSJ Serise Crawler Cable Conveyor 2
