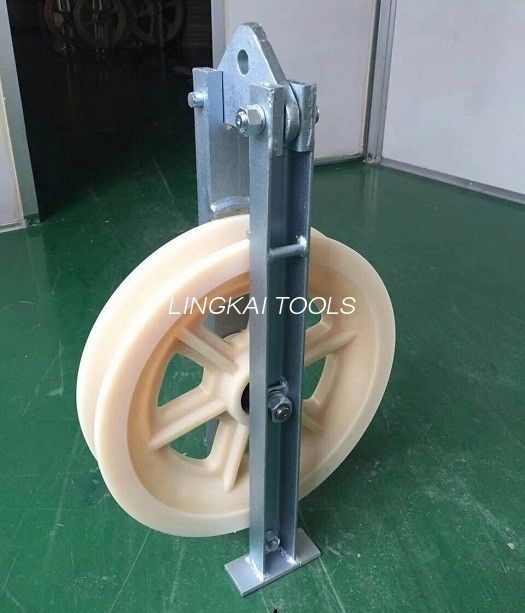

660mm Nylon Sheave Overhead OPGW Stringing Pulley

660mm Nylon Sheave Overhead OPGW Stringing Pulley
660mm Nylon Sheave Overhead OPGW Stringing Pulley 660mm Nylon Sheave Overhead OPGW Stringing Pulley 660mm Nylon Sheave Overhead OPGW Stringing Pulley

Large Image :  660mm Nylon Sheave Overhead OPGW Stringing Pulley

Product Details:
Place of Origin: NINGBO
Brand Name: Lingkai
Certification: ISO CE
Model Number: 660mm
Payment & Shipping Terms:
Minimum Order Quantity: 20 sets
Price: get the latest
Packaging Details: exported packing
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Detailed Product Description
Conductor Diameter: Up To 30mm Material Of Sheave: Nylon Or Aluminum Alloy
Stringing Blocks: Overhead Cable Stringing Blocks Brand Name: Lingkai
Means Of Transport: Ocean, Air, Land Customize: Helicopter Conductor Stringing Blocks
High Light:

OPGW Stringing Pulley

,

660mm Stringing Pulley

,

Nylon Sheave Stringing Blocks

660mm Nylon Wheel Power Transmission Parts Pulleys Stringing Of Transmission Line





660MM Overhead Conductor Stringing Blocks are used for overhead transmisson line conductor or OPGW stringing. The sheave is made in aluminum alloy lined with neoprene or high Strength MC Nylon.



Overhead Transmission Line Large Diameter Stringing Blocks

Item No. Model No. of Sheaves Rated Load (KN)

Diameter of Groove /

Conductor Size

Weight (kg) Material Outer Dia. / width Of Sheave
10101 SHD-508x75 1 20 Φ408mm / ≤ACSR400 mm² 22.5 Aluminum

Φ508mm / 75mm



10102 SHS-508x75 3 40 86 Central sheave steel
10103 SHW-508x75 5 60 108
10104 SHDN-508x75 1 20 18.5 Nylon
10105 SHSLN-508x75 3 40 51.5 Central sheave Nylon
10106 SHWLN-508x75 5 60 91.5
10107 SHSQN-508x75 3 40 60 Nylon
10108 SHWQN-508x75 5 60 75
10121 SHD-660x100 1 20 Φ560mm / ACSR400 - 500 mm² 30 Aluminum

Φ830mm / 110mm



10122 SHS-660x100 3 40 106 Central sheave steel
10123 SHW-660x100 5 60 136
10124 SHDN-660x100 1 20 20 Nylon
10125 SHSN-660x100 3 40 92 Central sheave Nylon
10126 SHWN-660x100 5 60 120
10127 SHSQN-660x100 3 40 85 Nylon
10128 SHWQN-660x100 5 60 100
10141 SHDN-822x110 1 30 Φ710mm / ACSR500 - 630 mm² 25 Nylon

Φ916mm / 110mm



10142 SHSQN-822x110 3 60 130 Central sheave Nylon
10143 SHWQN-822x110 5 90 180
10144 SHSQN-822x110 3 60 100 Nylon
10145 SHWQN-822x110 5 90 130
10151 SHDN-916x110 1 50 Φ800mm / ACSR720 - 800 mm² 45 Nylon
10152 SHSQN-916x110 3 80 140
10153 SHWQN-916x110 5 150 235



Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in aluminum alloy or high strength nylon. The big size 508mm, 660mm aluminum alloy sheave can be lined with neoprene. The big size 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with neoprene.
