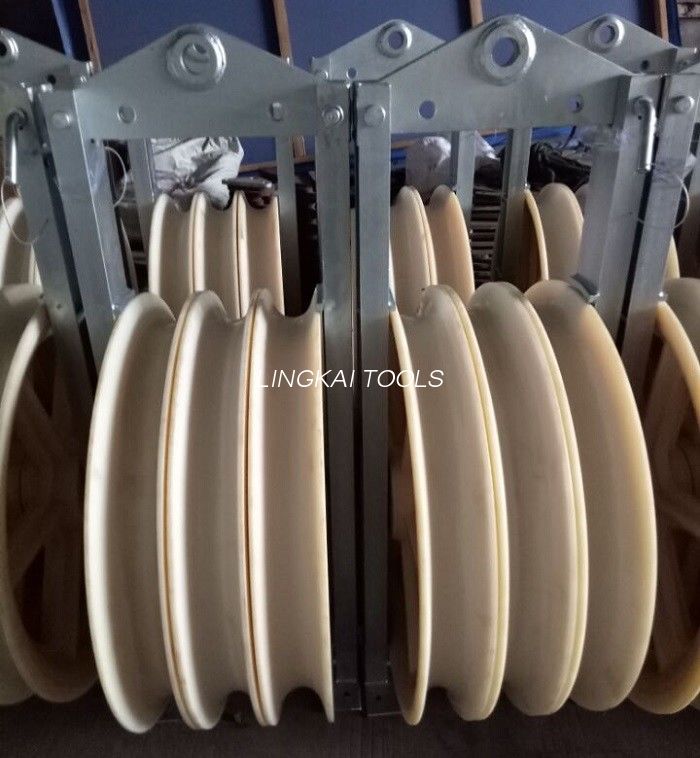

822 Series Nylon Wheel Wire Pulling Conductor Stringing Blocks

822 Series Nylon Wheel Wire Pulling Conductor Stringing Blocks
822 Series Nylon Wheel Wire Pulling Conductor Stringing Blocks

Large Image :  822 Series Nylon Wheel Wire Pulling Conductor Stringing Blocks

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: 822 diameter
Payment & Shipping Terms:
Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: standard exported packing
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000sets/month
Detailed Product Description
Name: Stringing Pulley Block Diameter: 822mm
Sheave: MC Nylon Sheave Weight: 118kg
ACSR: ACSR 630 Item No: 10143
High Light:

transmission line stringing block

,

stringing pulley block

822 Series Nylon Wheel Wire Pulling Blocks Galvanized Steel Wire Pulling Pulley



822 Series Pilot Triple Stringing Pulley Blocks Grounding Wire Conductor Terminal Blocks for Power Transmission



This 822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is LGJ630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.

The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.



1. Maximum suitable conductor ACSR630.

2. Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110

3. Rubber lined MC nylon sheave for conductor can be customized.



822mmTechnical Parameters

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Sheave Features
10141 SHDN822 1 30 40 MC nylon sheave
10142 SHSQN822 3 60 118 Middle: cast steel sheave Conductor: MC nylon wheel
10143 SHWQN822 5 120 180
10146 SHQ822 7 120 285 Middle: cast steel sheave Conductor: MC nylon wheel
10148 SHJ822 9 150 445

822 Series Nylon Wheel Wire Pulling Conductor Stringing Blocks 0
