Nylon Single Sheave ACSR Conductor Stringing Blocks

Name: Nylon Single Sheave ACSR Conductor Stringing Blocks
Brand: Ningbo Lingkai Electric Power Equipment Co., Ltd.
SKU: 508mm
Price: 100.00 USD
Availability: InStock

Product Details

Place of Origin: NINGBO

Brand Name: Lingkai

Certification: ISO CE

Model Number: 508mm

Payment & Shipping Terms

Minimum Order Quantity: 20 sets

Price: get the latest

Packaging Details: exported packing

Delivery Time: 5-15 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                ACSR Conductor Stringing Blocks, Nylon Conductor Stringing Blocks, Single Sheave Stringing Pulley


Trade Term:	FOB,CFR,CIF,DDP,CIP,EXW	Custom:	Helicopter Conductor Stringing Blocks
Means Of Transport:	Ocean, Air, Land	Conductor Diameter:	Up To 25 Mm

Trade Term:	FOB,CFR,CIF,DDP,CIP,EXW
Custom:	Helicopter Conductor Stringing Blocks
Means Of Transport:	Ocean, Air, Land
Conductor Diameter:	Up To 25 Mm

Product Description

Big Diameter Nylon Single Sheave Cable Stringing Pulley Wheel Acsr Conductor Stringing Block

Single sheave Nylon Stringing Block

Item No.	Model	ACSR Size Range (mm²)	Working Load (KN)	Weight (kg)	Material of Sheave
10191	SHDN-120x30	25-70	5	1.5	Nylon
10192	SHDN-160x40	70-95	10	2.4
10193	SHDN-200x40	95-120	15	2.6
10194	SHDN-200x60	120-150	15	3.1
10195	SHDN-250x40	120-150	20	3.7
10196	SHDN-250x60	150-180	20	3.9
10197	SHDN-270x60	180-240	20	4.4
10198	SHDN-320x60	240-300	20	7.5
10199	SHDN-400x80	300-400	20	8
10104	SHDN508	300-400	20	16	Nylon, optional can be lined with neoprene
10124	SHDN660	400-500	20	24
10131	SHDN750	500-600	30	32
10141	SHDN822	600-700	30	38
10151	SHDN916	700-800	50	51
10165	SHDN1040	800-900	50	60

Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove.

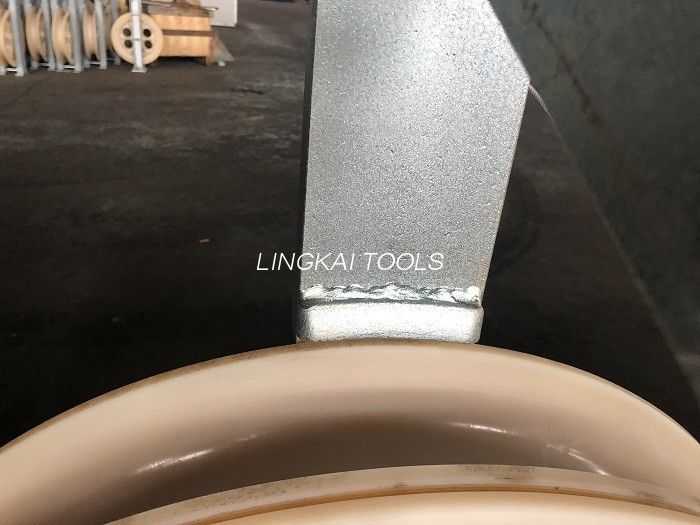

Nylon Single Sheave ACSR Conductor Stringing Blocks 0

Nylon Single Sheave ACSR Conductor Stringing Blocks 1
