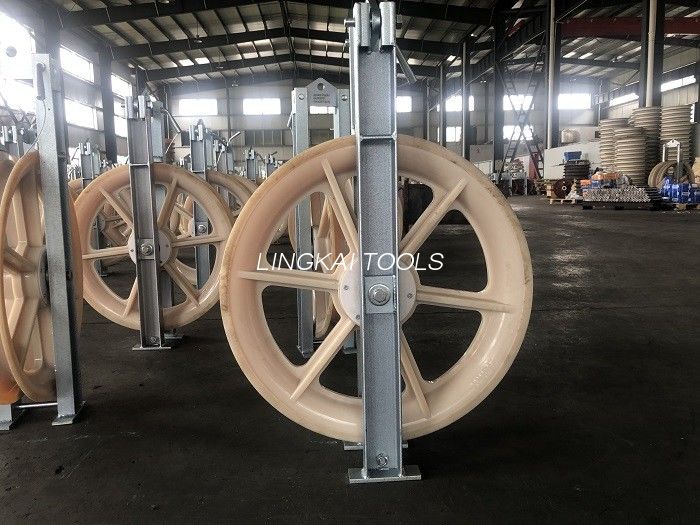

OPGW Wire Stringing Equipment With Five 822mm Wheels

OPGW Wire Stringing Equipment With Five 822mm Wheels
OPGW Wire Stringing Equipment With Five 822mm Wheels OPGW Wire Stringing Equipment With Five 822mm Wheels

Large Image :  OPGW Wire Stringing Equipment With Five 822mm Wheels

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Lingkai
Certification: ISO CE
Model Number: 822 mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: get the latest
Packaging Details: Standard shipping packing
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets /month
Detailed Product Description
Description Of Product: Transmisson Line Conductor Stringing Blocks Inner Diameter Of Sheave: 710mm
Outer Diameter Of Sheave: 822mm Width Of Sheave: 110mm
Material Of Sheave: MC Nylon Or Steel Conductor Diameter: Up To 36mm
High Light:

Five Wheels Wire Stringing Equipment

,

OPGW Wire Stringing Equipment

,

Five Wheels Stringing Blocks

822 Mm Stringing Equipment Tools Stringing Block Five Wheels Conductor Pulley





822MM Overhead Power Line Conductor Stringing Blocks are used for transmisson line conductor or OPGW stringing. The conductor sheave is made in MC Nylon, it can be lined with neoprene, The central sheave can be made in steel.



Note:

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).

2. The sheave size outer diameter X inner diameter X width: 822mm X 710mm X 110mm



Note:

1. Hook fitting, round eye fitting, and clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.



Test and Inspection:

  1. More than 12 engineers carry the Strict inspection and test procedure under ISO9001 quality control system and National Standard.

  2. Perfect Test facility include Test Tower, Tensile machines.

  3. All the stringing blocks have been tested before ex-works

822MM Nylon Sheaves Conductor Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Conductor Sheave
10141 SHDN822 500-700 30 39 Nylon, optional can be lined with neoprene
10142 SHSQN822 500-700 60 118
10143 SHWQN822 500-700 120 180
10146 SHQ822 500-700 120 285 Central steel sheave
10148 SHJ822 500-700 150 445

Application: It is suitable to string single, two, four, SIX AND EIGHT stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
