Home ProductsTransmission Line Stringing Tools

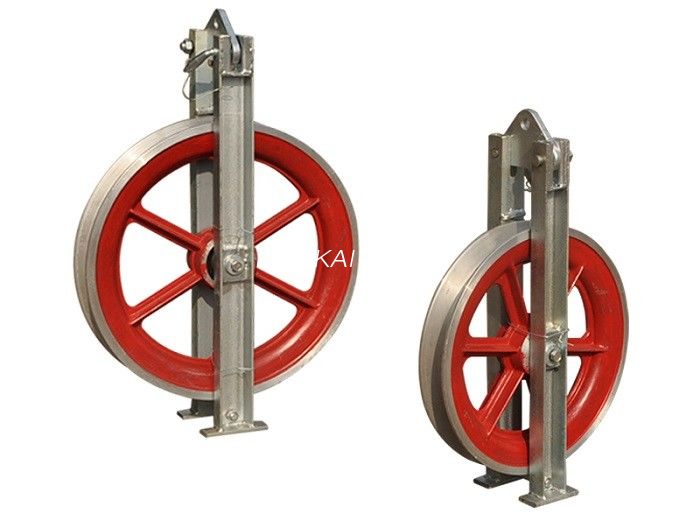

Bundled Power Line Construction Tools Aluminum Sheave Conductor Blocks

Bundled Power Line Construction Tools Aluminum Sheave Conductor Blocks

Bundled Power Line Construction Tools Aluminum Sheave Conductor Blocks
Bundled Power Line Construction Tools Aluminum Sheave Conductor Blocks

Product Details:

Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: SHD

Payment & Shipping Terms:

Minimum Order Quantity: 10sets
Price: get the latest
Packaging Details: Std exported packing
Delivery Time: 5-8 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000 sets/month
Contact Now
Detailed Product Description
Type: Pulley For Conductor Name: Aluminum Conductor Blocks
Model: SHD Applicaition: Construction Works
Wheel Size:: 120~1040mm Wheel Number: 1~5
High Light:

transmission line tool

,

transmission tools and equipment

Bundled Single Wheel Aluminum Conductor Stringing Block Pulley in Overhead Line Transmission



1.Wheel Size: 120~1040mm
2.Wheel Material: Nylon/Aluminum
3.Wheel number: 1~5
4.Galvanized Steel Frame

String Pulley aluminum pulley block



Cable Pulley
Stringing blocks have different diameter were used to string different conductors.

Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.



Product: stringing pulley blocks; stringing blocks.

Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.

Description:

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.

If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements



Model

Wheel size Diameter x Width

(mm)

Conductor size

(mm2)

Rated load

(kN)

Weight

(kg)

Wheel material
SHD-120X30 120x30 25~70 5 2.1 Aluminum
SHD-160X40 160X40 95~120 10 3.1
SHD-200X40 200X40 150~240 15 3.7
SHD-200X60 200X60 150~240 15 4.1
SHD-250X40 250X40 150~240 20 5.1
SHD-250X60 250X60 300~400 20 5.4
SHD-270X60 270X60 300~400 20 6.7
SHD-320X60 320X60 300~400 20 10.4
SHD-400X80 400X80 400~500 20 11.9
SHDN-120X30 120x30 25~70 5 1.5 Nylon
SHDN-160X40 160X40 95~120 10 2.3
SHDN-200X40 200X40 150~240 15 2.5
SHDN-200X60 200X60 150~240 15 3.0
SHDN-250X40 250X40 150~240 20 3.6
SHDN-250X60 250X60 300~400 20 3.8
SHDN-270X60 270X60 300~400 20 4.3
SHDN-320X60 320X60 300~400 20 7.5
SHDN-400X80 400X80 400~500 20 8

SHD-508X75 508X75 400 20 22.3 Aluminum
SHD-660X100 660X100 500 20 30
SHDN-508X75 508X75 400 20 18 Nylon
SHDN-660X100 660X100 500 20 20
SHDN-830X110 830X110 630 30 25
SHDN-916X110 916X110 800 50 45
SHDN-1040X125 1040X125 1000 55 105

Bundled Power Line Construction Tools Aluminum Sheave Conductor Blocks 0
