Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Standard Export Term
Delivery Time: 7days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/week
Product Name: |
Pull Push Rod |
Wheel: |
Rubber |
Drawing Head: |
Copper |
Working Temperature: |
-40°C To +80°C |
Colour: |
Colourful |
Packing: |
Std Export Term |
Product Name: |
Pull Push Rod |
Wheel: |
Rubber |
Drawing Head: |
Copper |
Working Temperature: |
-40°C To +80°C |
Colour: |
Colourful |
Packing: |
Std Export Term |

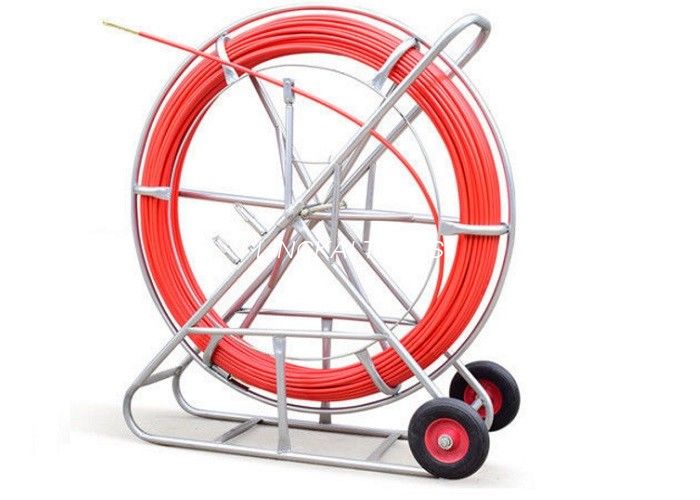

11mm Flexible Underground Cable Tools Rubber Wheel Fiberglass Snake Rod
Rod Description:11mm Flexible Underground Cable Tools Rubber Wheel Fiberglass Snake Rod
Fiberglass snake rod is widely used in the underground cable installation site, it is commonly called python rod by its nature passing through underground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables , wires inside the duct.
Pull Push Rodder:11mm Flexible Underground Cable Tools Rubber Wheel Fiberglass Snake Rod
| Specification |
Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16, |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material |
Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Characters |
Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion | |
| Packing | Inside | plastic woven strip wind around the frame |
| Outside | Wooden pallet and Wooden box |
Application:11mm Flexible Underground Cable Tools Rubber Wheel Fiberglass Snake Rod
Flexible Underground Cable Tools Rubber Wheel Fiberglass Snake Rod
Traceable Rods can be used to locate the duct block or damage portion identifications. its has high safety aspects to use underground applicartions because of this conduit dutc rod non conductivity of electricity, sets a major safety to site workers.
Site Show:11mm Flexible Underground Cable Tools Rubber Wheel Fiberglass Snake Rod
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
About us:Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
