Professional Overhead Line Stringing Manufacturer;
Undergroud Cable Pulling Tools Supplier.
|
Product Details:
Payment & Shipping Terms:
|
| Good Name: | Cable Pulling Push Rod | Diameter: | 4 ~ 16 Mm |
|---|---|---|---|
| Rod Length: | 30 ~ 500 M | Frame Spec: | Accordingly |
| Density: | 150 G / M | Application: | Pulling Push Cable |
| High Light: | cable pulling accessories,underground cable installation equipment |
||
11mm 200M Fiberglass Duct Rod Cable Rods Fishing Rod For Push Pulling Cable
Structure
Fiberglass Duct Rod Cable Rods Fishing Rod For Push Pulling Cable
Cable wire puller has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom .
Assembly: metal frame powder coated; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling; parking brake for the flexible rod control.
The ducts rodders normmaly comes in various diameters from 4.5 mm to 16 mm as per ground applications. normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications .
Cable Rod Material

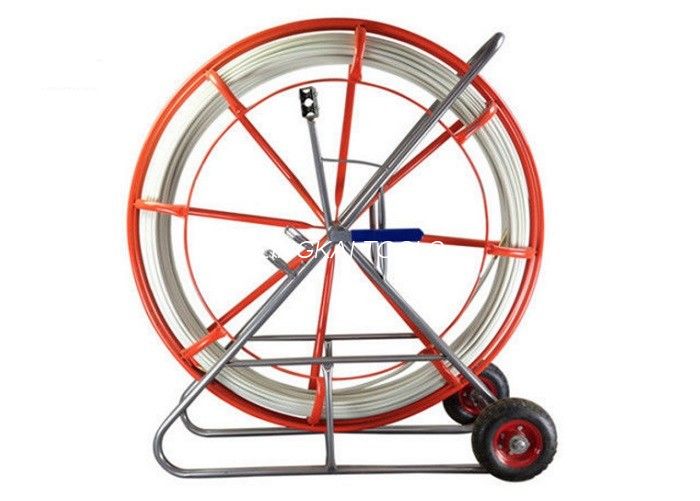

Picture Show Self Coiled Fiberglass Duct Rodder 295 Mm Bending Radius Spray Coating
Fiberglass Duct Rod More Physical Features
| Physical Characters |
Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion |
Cable Pusher Puller Rod can be customized on the length specificaitons, the main material is the FRP, it has the density 150g/m, working temperature below 40degree, breaking tension is 4.5t, and the bending radius is 295mm, apply the pultrusion precessing technolofy.
1.Easily push and pull;2.Light weight, durable, resistance to acid and alkail, 3, Big rubber wheels, make the push pull easily, 4. High quality copper drawing head 5.Guide fibergalss duct direction and go through smoothly. 6. Can be used to measuring the distance.
Other Underground Cable Tools:
