Product Details
Place of Origin: NINGBOCHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS001
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Std export term
Delivery Time: 7days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / week
Product Name: |
Push Pull Rod |
Accessories: |
Steel Frame, Wheels, Drawing Head |
Material: |
E-glass Fiber Inner And Resin |
Application: |
Clean Pipeline |
Diameter: |
4.0~16mm |
Lengh: |
Per Customer Demands |
Product Name: |
Push Pull Rod |
Accessories: |
Steel Frame, Wheels, Drawing Head |
Material: |
E-glass Fiber Inner And Resin |
Application: |
Clean Pipeline |
Diameter: |
4.0~16mm |
Lengh: |
Per Customer Demands |
Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod

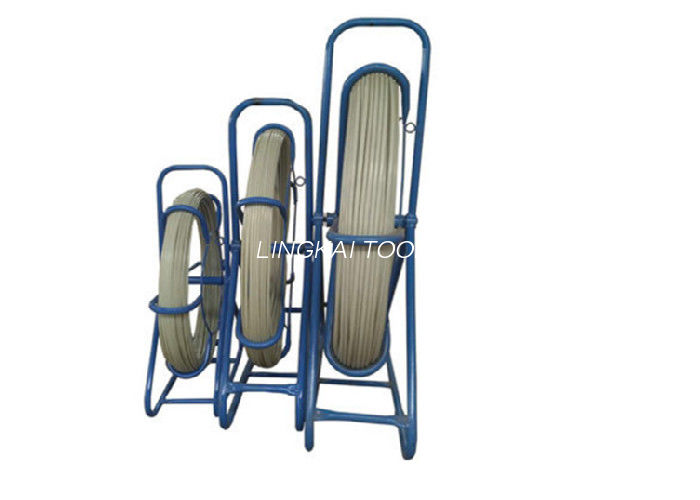

Wire Pulling Rod Description
Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod
Duct Rodders will equipped with different size reel according to the length of rod. There are wheels on the reel, which make it convenient for moving.Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.High tensile strength and bending properties, which make it to go through narrow pipes easily.Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather. Its usability will not be affected by temperature.
Cable Pulling Rods Application
1. Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2. Available push pull rodder
3. With cable roller
4. Lightweight and non-conductive
Duct Push Rodder
| Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16, |
| Rod Length (m) | 30~500 | |
| Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
| Wheel Diameter(mm) | 300mm | |
| Wall thickness of Metal Frame | 2.2mm | |
| Color | blue, yellow, red, white etc | |
| Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
| Rod Outer | High Density polyethylene coating | |
| Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
| Wheel | rubber | |
| Brake | Yes | |
| Drawing head | copper | |
| Physical Character | Density | 150g/m |
| Working temperature | -40°C to +80°C | |
| Breaking tension | 4.5T | |
| Bending Radius | 295mm | |
| Technology | Pultrusion | |
| Packing | Inside | plastic woven strip wind around the frame |
| Outside | Wooden pallet and Wooden box |
Note: Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod
we offer various sizes and colors for any specific requirement as customers' demand
Features:
Hot Dipped Galvanized Continous Line Stringing Tools Cable Conduit Rod
1. Strong non-conductive fiberglass rod construction
2. Stainless steel drawing head
3. For longer conduit runs and underground duct
4. Rugged tubular steel reel with adjustable position.
5. Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod
Traceable Duct Rod More Part Photo
