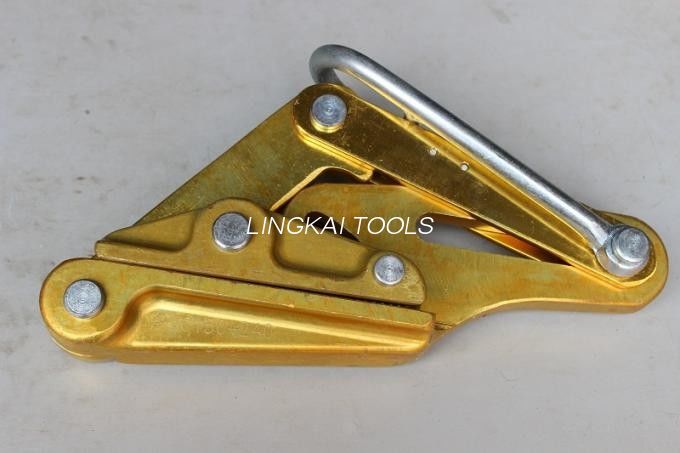

Insulated Wire Rope Transmission Line Stringing Tools Self Grip For PVC Cable

Insulated Wire Rope Transmission Line Stringing Tools Self Grip For PVC Cable
Insulated Wire Rope Transmission Line Stringing Tools Self Grip For PVC Cable Insulated Wire Rope Transmission Line Stringing Tools Self Grip For PVC Cable

Large Image :  Insulated Wire Rope Transmission Line Stringing Tools Self Grip For PVC Cable

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SKJL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton or wooden case
Delivery Time: 5~8 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 pcs / week
Detailed Product Description
Features: Light Weight Certificaitons: ISO
Weight: 1.0~1.4 Kg Rated Load: 5~20 KN
Materail: Aluminum Apply: Overhead Line
High Light:

come along clamps

,

aluminum alloy conductor clamps

Insulated Wire Rope Self Gripping Clamp Line Stringing Tools For PVC Cable



Self Gripping Clamp Spec

Insulated wire rope self gripping clamp is quite useful in the power operation site, it has the 5,10,15,20 classify rated load, to suit the applicable wire from 6 diameter to 29 diameter, max gap can uop to 31mm, the whole set material is made by the 100% standard first grade aluminum alloy, the best top raw material we applied, you can feel assure the strenght quality, and durable features.

In the plant, to meet the more demands on the site operation, we have the bolt tpe round steel rope gripper, and anti twist steel rope gripper, insulated conductor gripper...etc. also there is a radial locking grip to support the fiber optical cable stringing site.

Here is the detailed self gripping clamp technical information.

Order number Model Rated load (kN) Diameter of applicable wire Maximum gap (mm) Weight (kg) Remark
13182 SKJL-0.5 5 Φ6~Φ10 12 1.0 Aluminum alloy
13192 SKJL-1 10 Φ10~Φ14 15 1.4 Aluminum alloy
13202 SKJL-1.5 15 Φ14~Φ20 22 3 Aluminum alloy
13212 SKJL-2 20 Φ20~Φ25 27 4.0 Aluminum alloy
13213 SKJLA-2 20 Φ25~Φ29 31 4.0 Aluminum alloy

A cable grip is a device for propelling a vehicle by attaching to a wire cable (also called wire rope) running at a (relatively) constant speed. The vehicle may be suspended from the cable, as in the case of aerial lifts such as a gondola lift, may be guided by rails, as in a cable traction railway, or may be self-guiding, as in a button lift. Typically, multiple vehicles will use the same cable; where just one or two vehicles are in use they will tend to be attached to the cable permanently (e.g. funiculars).

More infomation show

Insulated Wire Rope Self Gripping Clamp Line Stringing Tools For PVC Cable



Insulated Wire Rope Transmission Line Stringing Tools Self Grip For PVC Cable 0
