Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SKL
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Std export term
Delivery Time: 5 ~ 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / week
Using: |
Adjustment ,Sagging |
Rated Load: |
80 KN |
Applicable Conductor: |
ACSR1120 |
Advantage: |
Light Weight |
Origin: |
Ningbo China |
Certification: |
ISO |
Using: |
Adjustment ,Sagging |
Rated Load: |
80 KN |
Applicable Conductor: |
ACSR1120 |
Advantage: |
Light Weight |
Origin: |
Ningbo China |
Certification: |
ISO |

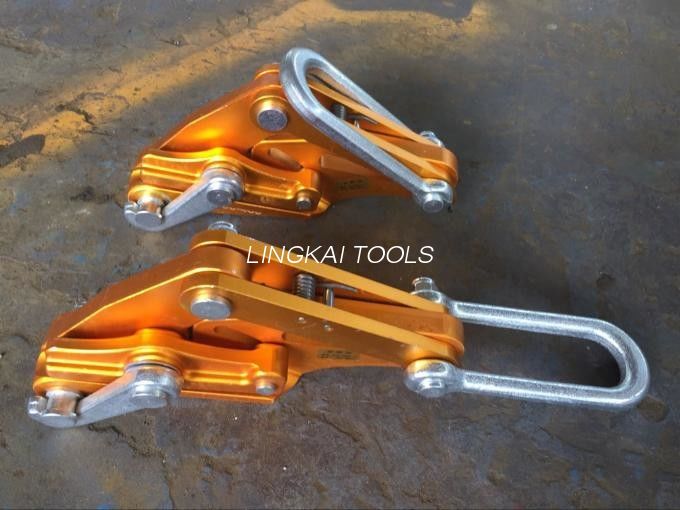

Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging
This wire grip clamp is for big conductors adjustment or sagging, which is processed during the heat treatment, and high temperature conditions,( quenched and tempered). Planar shape clamping jaw is suitable for pulling steel strand and steel wire, will not damage the cable's surface.
Wire Roper Clamp Features:
Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging
1. Forged with high strength Aluminum alloy;
2. Light in weight;
3. no damaging on wire.
Wire Grip Shipment
1. The wire grips will be shipped in plywood case by air or by ship.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Self Gripping Clamp Detailed Spec
Cable Pulling Tools Wire Grip Clamp For Big Conductors Adjustment / Sagging
| Item No. | Model No. | Rated Load (KN) |
Applicable Conductor (ACSR-MM2) |
Max Open (MM) |
Unit Weight (KG) |
| 0201 | SKL-7 | 7 | 25~70 | 14 | 1.0 |
| 0202 | SKL-15 | 15 | 95~120 | 18 | 1.4 |
| 0203 | SKL-25 | 25 | 150~240 | 24 | 3.0 |
| 0204 | SKL-40 | 40 | 300~400 | 32 | 4.0 |
| 0205 | SKL-50 | 50 | 500~630 | 36 | 6.6 |
| 0206 | SKL-40G | 40 | 400 | 32 | 4.3 |
| 0207 | SKL-50G | 50 | 500 | 34 | 7.0 |
| 0208 | SKL-50GA | 50 | 630 | 36 | 7.3 |
| 0209 | SKL-60G | 60 | 720 | 38 | 9.2 |
| 0210 | SKL-70G | 70 | 900 | 42 | 14.0 |
| 0211 | SKL-80G | 80 | 1000 | 45 | 18.0 |
| 0212 | SKL-80GA | 80 | 1200 | 48 | 18.0 |
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality
About us: Lingsheng Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has wined the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.
Other Electrical Cable Pulling Tool:
