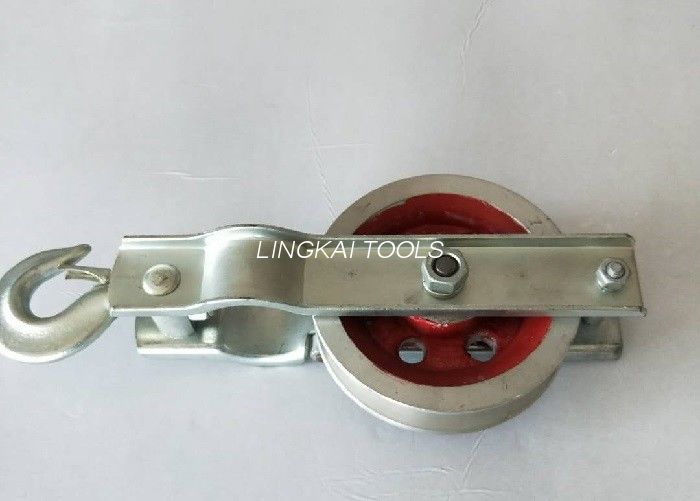

1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block

1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block
1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block 1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block

Large Image :  1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SHD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Std export term
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Detailed Product Description
Material: Aluminum Rated Load: 5~20kn
Sheave: One ACSR: 50~500
Weight: 1.5~15kg Model: SHD
High Light:

cable pulling tools

,

transmission tools and equipment

1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block



Product: stringing pulley blocks; stringing blocks.

To protect the cable and conductor from fricting when they are laying.They can save time and effort.

More blocks information to share

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Technical Parameters

1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block

Item Number Model Suitable Conductor Rated Load (kg) Weight (kg) Remark
10171 SHD-120×30 LGJ25~70 5 1.5 Aluminum sheave
10172 SHD-160×40 LGJ95~120 10 2.5
10173 SHD-200×40 LGJ150~240 15 4
10174 SHD-200×60 LGJ150~240 15 4.6
10176 SHD-250×60 LGJ300~400 20 6
10178 SHD-320×60 LGJ300~400 20 9.5
10179 SHD-400×80 LGJ400~500 20 15
10191 SHDN-120×30 LGJ25~70 5 1.5 Nylon sheave
10192 SHDN-160×40 LGJ95~120 10 2.5
10193 SHDN-200×40 LGJ150~240 15 3.6
10194 SHDN-200×60 LGJ150~240 15 4
10196 SHDN-250×60 LGJ300~400 20 4.5
10197 SHDN-270×60 LGJ300~400 20 5.6
10198 SHDN-320×60 LGJ300~400 20 6.7
10199 SHDN-400×80 LGJ400~500 20 13

1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block 01T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block 1



1T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block 21T SHD Model Aluminum Sheave Hook Style Transmission Line Stringing Block 3

Our Service:

1 Well trained sales team service for you.
2 Small MOQ, usually sample is available.
3 Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4 Top quality: we have professional QC team to control the quality.
5 Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity.
6 We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment
