Double Weaving Cable Pulling Grips , Stringing Conductor Wire Pulling Grips

Product Details

Place of Origin: NINGBO CHINA

Brand Name: Linkai

Certification: ISO CE

Model Number: SLW

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Packaging Details: Carton

Delivery Time: 8-10 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1000 pcs / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                transmission line tool, cable pulling tools


Model:	SLW	Feature:	Double Head
Conductor:	LGJ70-90	Load:	15 KN
Warranty:	1 Year	Breaking:	30 KN

Model:	SLW
Feature:	Double Head
Conductor:	LGJ70-90
Load:	15 KN
Warranty:	1 Year
Breaking:	30 KN

Product Description

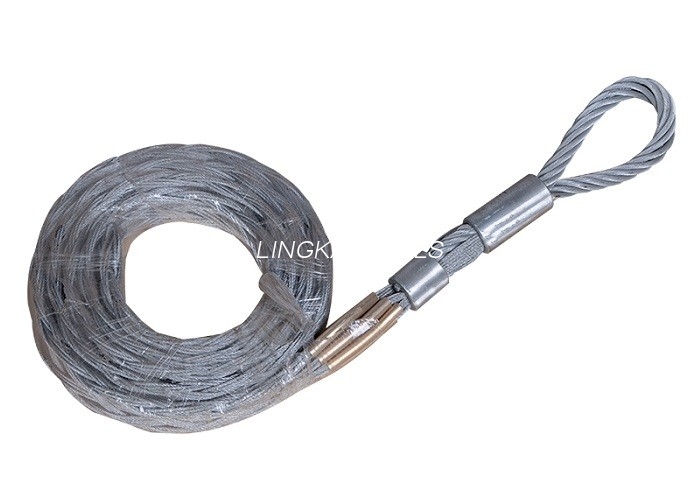

SLW-2 Stringing Conductor Pulling Grip Double Weaving Cable Pulling Grip

Product DescriptionCable Grips Cable Pulling rope socks

The cable is first covered, and then pulled by manual or lifting tools, so as to achieve the purpose of wiring and protecting the cable. The cable can also be hung with a net (note that the net body of the net sleeve is gridding, so that it becomes tighter and tighter. It is very convenient to use if you want to loosen only by pushing in the opposite direction of the cable.

Technical Data

SLW-2 Stringing Conductor Pulling Grip Double Weaving Cable Pulling Grip

Item number		Model	Applicable conductor	Load(kN)
Single head	Double head	Model	Applicable conductor	Rated	Breaking
17161		SLW-1.5	ACSR70-95	15	30
17162	17182	SLW(S)-2	ACSR120-150	20	40
17163	17183	SLW(S)-2.5	ACSR185-240	25	50
17164	17184	SLW(S)-3	ACSR300-400	30	60
17165	17185	SLW(S)-4	ACSR500-630	40	80
17166	17186	SLW(S)-5	ACSR720	50	125

Double Weaving Cable Pulling Grips , Stringing Conductor Wire Pulling Grips 0

Packing and Delivery

Packing Details : Packing by carton or as your required

Delivery Details : 5-8 days after full payment

Double Weaving Cable Pulling Grips , Stringing Conductor Wire Pulling Grips 1

How to use the cable pulling grip?

1. Start the lacing from the eye end or anchoring end of the cable grip

2. Thread the lace through the first two loops of the split and pull

3. Don not pull the lace too tight at this stage leave a space between adjoin-ing loops roughly equal to the width.

4. As you continue the length, pull the open sides of the grips as wide apart as required.

5. Try to achieve an even and neat lace-up as this assists with the strength of the grip when pulling.

6. Finally, tie the end of lace once or twice round the end of the cable grip twisting the ends together securely.Excess lace can be cut off.
