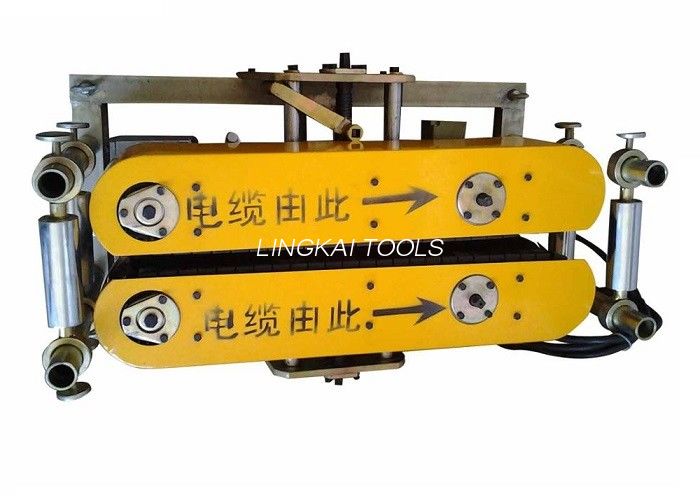

Electric Engine Underground Cable Tools , DSJ Series Cable Laying Equipment

Electric Engine Underground Cable Tools , DSJ Series Cable Laying Equipment

Electric Engine Underground Cable Tools , DSJ Series Cable Laying Equipment

Product Details:

Place of Origin: NINGBO CHINA
Brand Name: Lingsheng
Certification: ISO CE
Model Number: DSJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton or wooden case
Delivery Time: 8 - 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets / month
Contact Now
Detailed Product Description
Model: DSJ-180 Pulling Force: 900 Kg
Pulling Speed(m/min): 6 Name: Cable Converying Machine
Apply: Cable Laying Engine: Electrical

DSJ Electric Engine Underground Cable Tools,Cable Laying Equipment



Electrical Cable Hauling Machina for pulling cable Technical Data

Model Type DSJ-150 DSJ-180
Line pulling(KGS) 700 900
Pulling Speed(m/min) 8 6
Electric motor 1.1KW *2 1.5KW * 2
Oversize dimension 950*500*400 1020*590*400
Weight(KGS) 150 180-200
Cable diameter Φ30 - 150 mm Φ30 - 180 mm
Transimission I=45 I=60
Rubber sheet thickness 25mm 25mm

Quick Detail DSJ Electric Engine Underground Cable Tools,Cable Laying Equipment

1. Pulling Force 900kg

2. Pulling Speed:6m/min

3. Electric engine 1.5KWx2

4. Weight:200kg

Application DSJ Electric Engine Underground Cable Tools,Cable Laying Equipment

220V 380V Eletric Cable Laying Machine/cable winch we manufactured, is the ideal machine of cable transmission used in power,

petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.

It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.

Electric Engine Underground Cable Tools , DSJ Series Cable Laying Equipment

Cable Laying Machine Component

1. Conveyor

Conveyor is the main part of the equipment, which consists of the left and the right transmission parts, electric gearbox, adjusting mechanism, sprocket, bracket cover , etc.

2. Pulley

Pulley is mainly used to support cable, in order to reduce the friction when transmitting cable, pulley mechanism can be easily fixed in cable bridge frame or on the ground, as it does not need to be fixed.

3. Guide pulley

For guiding cable at turning, and ensuring that the bending radius in the allowed range.

4.Control panel

The control panel is the main equipment of electrical control and it can control the ten conveyors forward, backward, stop action at the same time.

5. Cable bracket

Cable bracket is jack type structure, landing on the rise and fall of a jack to lift or cable, which can bear 7-20 tons.

Cable Laying Equipment Features

Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,

reduce labor intensity, improve work efficiency and ensure the safety.

Electric Engine Underground Cable Tools , DSJ Series Cable Laying EquipmentElectric Engine Underground Cable Tools , DSJ Series Cable Laying Equipment
