SZ4A Transmission Line Stringing Tools Running Boards For Four Bundle Conductors

SZ4A Transmission Line Stringing Tools Running Boards For Four Bundle Conductors
SZ4A Transmission Line Stringing Tools Running Boards For Four Bundle Conductors SZ4A Transmission Line Stringing Tools Running Boards For Four Bundle Conductors

Large Image :  SZ4A Transmission Line Stringing Tools Running Boards For Four Bundle Conductors

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SZ4A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: latest
Packaging Details: wooden case
Delivery Time: 3-5 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 set/month
Detailed Product Description
Model: SZ4A Rated Load: 130 KN
Conductor: Four Bundle Apply: Stringing
Weight: 139 Kg Feature: Poising Sheave, Independent
High Light:

cable pulling tools

,

transmission tools and equipment

SZ4A Head Boards Running Board For Four Bundle Conductors For Overhead Line



Notes:Can be customized according to the seecification of other stringing blocks.

SZ4A Head Boards Running Board For Four Bundle Conductors For Overhead Line

Model Rated load(KN) Applicable string block sheave width(mm) Weight(kg) Feature
SZ4A-13 130 100 139 Poising sheave
SZ4B-13 130 100 82 Independent
SZ4B-18 180 110 95
SZ4B-25 250 110 105
SZ4B-32 320 125 150
Application:SZ4A Head Boards Running Board For Four Bundle Conductors For Overhead Line
It is used for stringing 4 bundled conductors, to connect the pilot wire rope with conductors.
The vertical heavy links hold running board in horizontal position for correct entrance into stringing blocks.
The balance pulley type is normally used for 2 bundled conductors which are pulled from same bull wheels of tensioner.

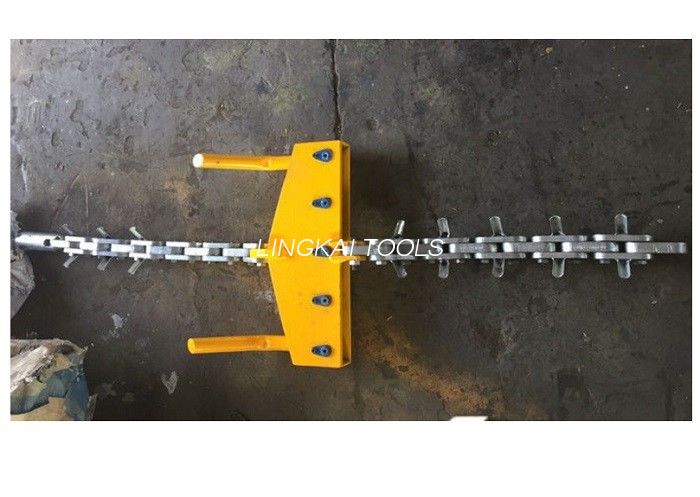

SZ4A Transmission Line Stringing Tools Running Boards For Four Bundle Conductors 0

Running Head Board For Four Bunled Conductor Overhead Tranmission Line Application

This running (head) board is specially designed to connect pulling rope with five bundled conductors in stringing of overhead power transmission line.

SZ4A Transmission Line Stringing Tools Running Boards For Four Bundle Conductors 1
