Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: Anti Twist Braid Rope
Payment & Shipping Terms
Minimum Order Quantity: 1000 meter
Price: negotiable
Packaging Details: Steel roll
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 meter / day
Name: |
Anti-twisting Steel Rope |
Structure: |
12 Strands |
Feature: |
Six Square |
Surface: |
Galvanized |
Diameter: |
30mm |
Material: |
Steel |
Name: |
Anti-twisting Steel Rope |
Structure: |
12 Strands |
Feature: |
Six Square |
Surface: |
Galvanized |
Diameter: |
30mm |
Material: |
Steel |

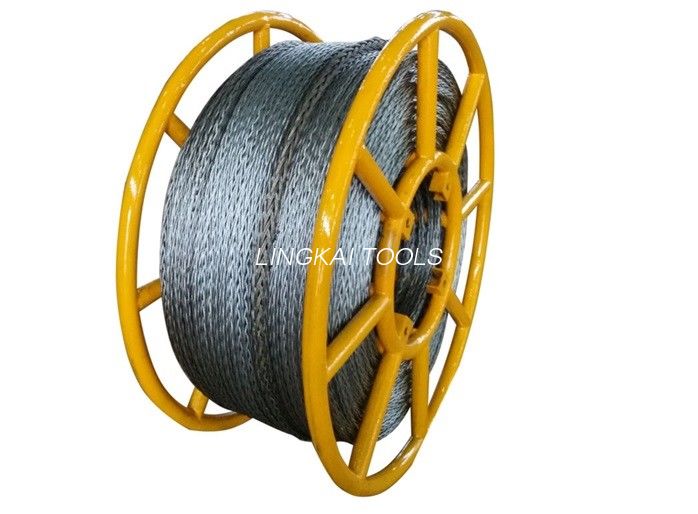

Hexagon Galvanized Anti Twist Wire Rope Weave Steel Non Rotating Wire Rope
Application
Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope is applied to mechanical pulling and tensioning release conductors.
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Anti Twist Braid Rope Data Sheet Technical Data
| Model | Structure |
Nominal Dia (mm) |
Single bundle Dia (mm) |
Ref Weight (kg/100m) |
Breaking Force(KN) |
Standard Length (m) |
| HL9-12×19W | Hexagon with 12 strands | 9 | 2.0 | 26.69 | 55.0 | 1000 |
| HL11-12×19W | Hexagon with 12 strands | 11 | 2.5 | 45.73 | 80.5 | 1000 |
| HL13-12×19W | Hexagon with 12 strands | 13 | 3.0 | 57.96 | 120.0 | 1000 |
| HL16-12×19W | Hexagon with 12 strands | 16 | 3.5 | 82.80 | 158.0 | 1000 |
| HL18-12×19W | Hexagon with 12 strands | 18 | 4.0 | 103.82 | 210.0 | 1000 |
| HL20-12×T25Fi | Hexagon with 12 strands | 20 | 4.5 | 129.62 | 250.0 | 800 |
| HL22-12×T25Fi | Hexagon with 12 strands | 22 | 4.8 | 147.88 | 320.0 | 800 |
| HL24-12×T25Fi | Hexagon with 12 strands | 24 | 5.0-5.2 | 160.23 | 360.0 | 800 |
| HL26-12×T25Fi | Hexagon with 12 strands | 26 | 5.5-5.6 | 193.71 | 420.0 | 700 |
| HL28-12×T29Fi | Hexagon with 12 strands | 28 | 6.0 | 230.50 | 480.0 | 500 |
| HL30-12×T29Fi | Hexagon with 12 strands | 30 | 6.5 | 272.04 | 540.0 | 500 |
| HL20-18×19W | Hexagon with 18 strands | 20 | 4.0 | 159.80 | 300.0 | 800 |
| HL22-18×T25Fi | Hexagon with 18 strands | 22 | 4.2 | 189.80 | 389.0 | 800 |
| HL24-18×T25Fi | Hexagon with 18 strands | 24 | 4.8 | 216.20 | 440.0 | 800 |
| HL26-18×T25Fi | Hexagon with 18 strands | 26 | 5.2 | 276.80 | 480.0 | 700 |
| HL28-18×T29Fi | Hexagon with 18 strands | 28 | 5.4 | 301.20 | 580.0 | 500 |
| HL30-18×T29Fi | Hexagon with 18 strands | 30 | 5.6 | 361.60 | 658.0 | 500 |
| HL32-18×T29Fi | Hexagon with 18 strands | 32 | 6.0 | 423.00 | 780.0 | 500 |
Technical
Hexagon Galvanized Anti Twist Wire Rope Weave Steel Non Rotating Wire Rope
We adopt high quality steel rope to braide anti-twisting steel rope.It is used for pulling the conductor in the overhead transmission line.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
