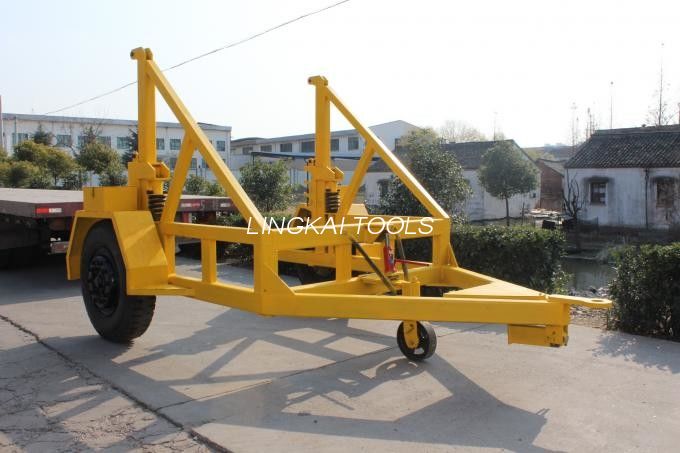

80KN Hydraulic Underground Cable Installation Equipment Wire Reel Trailer

80KN Hydraulic Underground Cable Installation Equipment Wire Reel Trailer
80KN Hydraulic Underground Cable Installation Equipment Wire Reel Trailer 80KN Hydraulic Underground Cable Installation Equipment Wire Reel Trailer

Large Image :  80KN Hydraulic Underground Cable Installation Equipment Wire Reel Trailer

Product Details:

Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: LS-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 sets / month
Detailed Product Description
Name: Cable Drum Trailer Load: 8T
Model: LS-8 Using: Transporting Cable Reel
Apply: Underground Site Material: Steel
High Light:

cable pulling device

,

underground cable installation equipment

80KN Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel



Application 80 KN Hydraulic Cable Reel Trailer Steel Material For Transporting Cable Reel

1. Uses in the large-scale reel laying
2. Loading and unloading.
3. The transportation.

Technical data of 80KN Hydraulic cable reel drum trailer for 3300mm coil diameter

Model Rated Load Weight(kg) Applicable coil diameter(mm) Applicable coil width(mm) Overall dimensions(mm)
LS-8T 8T 2300 ≤3300 ≤1750 4300×3200×2700

Description: 80KN Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel .This product is the new generation of cable trailer, which integrates the function of drum hauling, cable pulling, cable pushing, guiding and tight into a whole. Equipped with automatic braking device, it can brake effectively only by moving clutch. With compact design and flexible steering function, it can be operated under narrow work site. Simple operation and easy maintenance, it is a necessary tool for electric power construction.

Cable drum trailer, cable reel trailer,Technical Data

Hydraulic Cable Reel Drum Trailer For Transporting Cable Reel

Model Max Load Weight Max Lifting Height Inside Wide length Wide High
(T) (kg) mm mm (mm) (mm) (mm)
LS-3T 3 600 1550 1400 3700 2200 1800
LS -5T 5 900 1750 1650 4000 2700 2180
LS -8T 8 1200 1900 1950 4200 3200 2300
LS -10T 10 1500 2000 2000 4300 3400 2400
LS -12T 12 2600 2000 2000 4300 3400 2400

Detailed Description

1. This strong cable drum transport and laying trailer uses the power shifting gear technology,uses nimbly convenient.

2. Uses in loading and unloading, the transportation, the large-scale reel laying.

3. Of course you can according to the need, have custom-made the size.

80KN Hydraulic Underground Cable Installation Equipment Wire Reel Trailer 0
