Product Details:
Payment & Shipping Terms:
|
| Model: | CP700 | Name: | Manual Hydraulic Pump |
|---|---|---|---|
| Max Oil Pressure: | 70Mpa | Oil Volume(L): | 0.94 |
| Weight: | 9 Kg | Oil Tube: | 1.5m |
| High Light: | hydraulic cable crimping tool,hydraulic wire crimping tool |
||

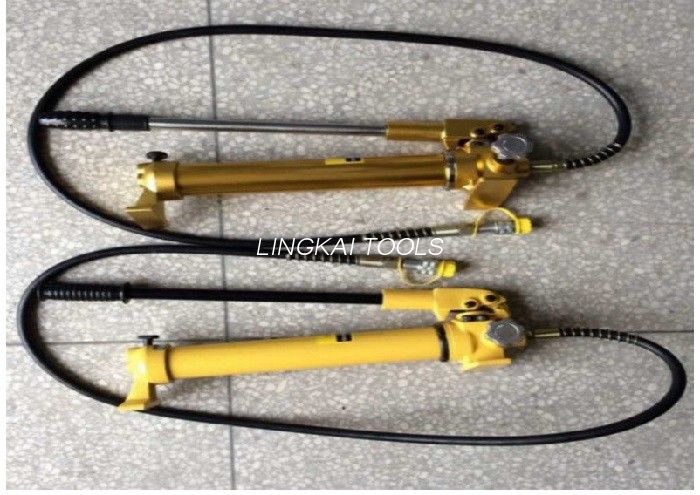

CP-700 70MPa Manual Pump Hydraulic Hand Pump With Double Loop Piston
Features:CP-700 70MPa Manual Pump Hydraulic Hand Pump With Double Loop Piston
1 High Pressure
1 Double loop piston
4 Ultra Small
5 Easy Operation
6 Convenient to Carry
7 Wide Range of Application
Technical Data of Portable 70MPa manual hydraulic oil pump
CP-700 70MPa Manual Pump Hydraulic Hand Pump With Double Loop Piston:max pressure is 70Mpa. oil volume is 0.94,1.0,0.72L, the different hose,1.5m,2m,2m.
| Model | Maximum pressure(MPa) | Oil volume(L) | Weight(kg) | Remarks |
| CP-700 | 70 | 0.94 | 9 | 1.5m hose |
| HPX-700 | 70 | 1.0 | 5 | 2m hose |
| HPX-700 | 70 | 0.72 | 9.6 | 2m hose |
Hand Hydraulic Pump CP-700 is a Hand-operated Single-Acting pump.It is used to provide pressurized oil to compatible remote control single-acting tools:Crimping Head / Cutting Head / Cylinder / Pipe bender / Busbar tools etc.Where 700Bar (10000PSI) working pressure is needed. With PT 3/8" quick coupler,
pumps can be quickly connected with compatible tools. Double speed unit and safety valve assembled inside make operation fast and safe
Hand operated style: No electric power is needed.
Quick Coupler: For fast connection with compatible tools.
Double Speed Unit: For quick operation. Allow quick oil delivery under no load condition (12.26cc/stroke),
and then bulid sufficient working pressure under losd condition (20-700Bar)
Safty Valve: For safe operation. Automatically relief pressure when rated pressure is reached,
protect hydraulic system from overpressure
Steel Case Package: For easy carrying and protect pumps well during shipping
Hand Hydraulic Pump Hydraulic Manual Pump Model CP-700 Technical Data
CP-700 70MPa Manual Pump Hydraulic Hand Pump With Double Loop Piston
| Item No: CP-700 | ||
| Type | hand | |
| Max output pressure | Low pressure | 2Mpa |
| High pressure | 70Mpa | |
| output of the oil | Low pressure | 4cc |
| High pressure | 11cc | |
| Capacity of oil | 940cc | |
| Direction of piston | double | |
| Weight | approx9kg | |
| Measurement(LxWxH) | 510x140x150mm | |
|
Feature: CP-700 The Large oil capacity high pressure hydraulic hand pump 1. Hydraulic operated pump to drive crimping head, cutting heads and punching head including, high pressure hose and coupler plug 2. the oil number is Shell Tellus T15, oil which must be changed every half year. |
||
