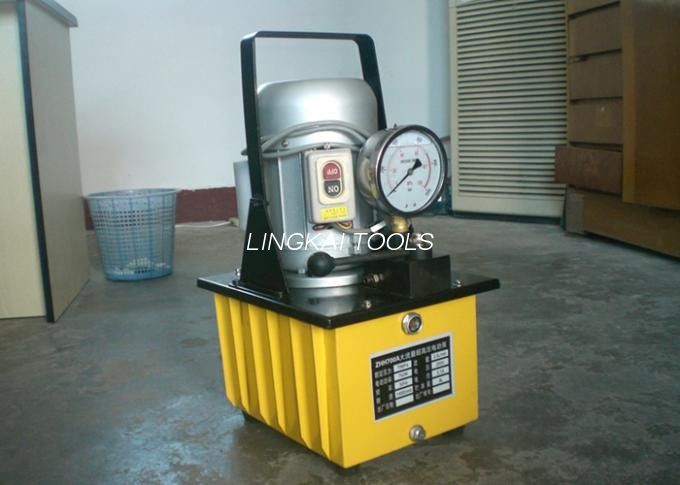

DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump
Application DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump
For a variety of wire, strand crimping, reinforcement, cutting jobs, it is the construction of power transmission line construction indispensable work tool. Change the hydraulic pump to work as an independent source, also used in other forms of hydraulic actuators, and versatile.
Specifications DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump
1. High strength
2. Corrosion Resistance
3. Light weight
4. Long life
5. Reasonable structure
6. Easy to operate,reliable
7. High output pressure
8. Easy to maintain.
Data Sheet DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump
| Item No. |
DYB-63A |
| Working pressure |
high pressure:70Mpa |
low pressure:7Mpa |
| Rated output |
high pressure:0.32L/min |
low pressure:2.6L/min |
| Power Rating |
750W |
Speed |
1400r/min |
| Working Power |
50Hz or 60Hz, 220V or 380V |
| Oil Capacity |
10L |
Type of oil |
15# antiwear hydraulic oil |
| Weight |
31kg |
Noted |
single acting valve and normal pump |
Function:DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump
1. High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. effective oil volume.
2. Pressure safety valve over pressure unit could avoid over pressure damage. At 700kg/cm2, automatically pressure release.
3. High pressure is for driving piston and low pressure is for piston reset(DYB-63A),
4. Oil pipe fitted with quick coupling could be ordered at any length.
5. Oil pipe coupling fitted with PT3/8'' thread.
Features:DYB-63A Electric Motor Driven Hydraulic Oil Pump,Hydraulic Electric Pump
1. Parameter:2−stage pump with heat exchange,380v,50Hz,three phase
2. The maximum operating pressure :70Mpa
3. Flow:low pressure 10 L⁄m, high pressure4L⁄m
4. Operation :suitable for single and multi–operation (2 pair ports)
5. Two stage with hear exchange
Please click below picture to find the video about application method
