Product Details
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YQ30
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Model: |
SA-YQ30 |
Name: |
Hydraulic Puller |
Max Pull: |
3T |
Continuous Force: |
25KN |
Max Speed: |
5km/h |
Grooves Number: |
7 |
Model: |
SA-YQ30 |
Name: |
Hydraulic Puller |
Max Pull: |
3T |
Continuous Force: |
25KN |
Max Speed: |
5km/h |
Grooves Number: |
7 |

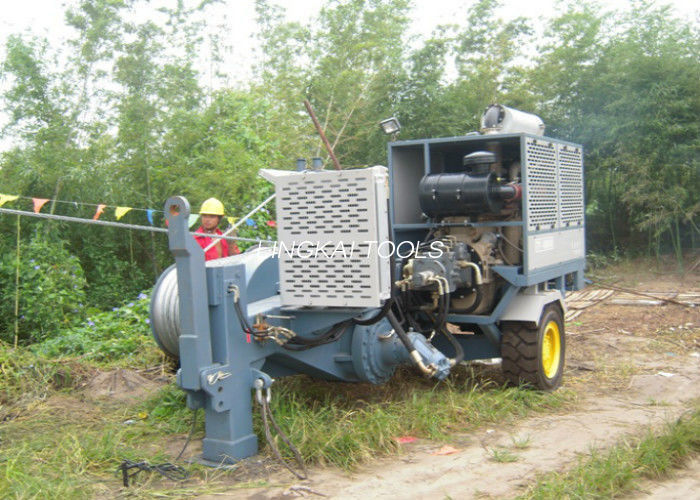

SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine For Transmission Line
This SA-YQ30 Hydraulic Puller possesses the steplessly adjustable pulling speed and traction force. What's more, the pull in the rope can be visually displayed on the line pull gauge. This equipment also comes with an overload automatic protection system. The maximum traction force for conductor stringing operation can be preset.
The spring applied hydraulically released brake can act automatically. Thus, the secure operation of our hydraulic puller can be well ensured, when the motor suddenly turns off or other reasons cause the hydraulic failure.
Furthermore, our SA-YQ30 Hydraulic Puller is equipped with the steel wire rope automatically winding device, which can automatically arrange the rope and also make loading and unloading convenient.
Technical Parameter
SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine For Transmission Line
| Model | SA-YQ30 Hydraulic Puller |
| Maximum Traction Force (kN) | 30 |
| Continuous Tractive Effort (kN) | 25 |
| Maximum Pulling Speed (km/h) | 5 |
| Bullwheel Bottom of Groove Diameter (mm) | Φ300 |
| Number of Bullwheel Grooves | 7 |
| Maximum Diameter of Suitable Steel Rope (mm) | Φ13 |
| Maximum Through Connector Diameter (mm) | Φ40 |
| Engine Power / Speed (kW/rpm) | 31/2200 |
| Dimensions (mm) | 3200× 1600× 2000 |
| Weight (kg) | 1500 |
Main Components
SA-YQ30 30KN Hydraulic Cable Puller With Diesel Engine For Transmission Line
| Engine | Chinese famous diesel engine |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
| Main Pump | Sauer Danfoss pump |
| Main Motor | Italian SAI technique |
| Suitable Drum | Model GSP950 drum with its item number of 07125A |
