Automatic Conductor Stringing Equipment SA-YQ180 For Pulling 220KV Conductor

Automatic Conductor Stringing Equipment SA-YQ180 For Pulling 220KV Conductor

    • Automatic Conductor Stringing Equipment SA-YQ180 For Pulling 220KV Conductor
    • Automatic Conductor Stringing Equipment SA-YQ180 For Pulling 220KV Conductor
  • Automatic Conductor Stringing Equipment SA-YQ180 For Pulling 220KV Conductor

    Product Details:

    Place of Origin: NINGBO CHINA
    Brand Name: Linkai
    Certification: ISO CE
    Model Number: SA-YQ180

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Export term
    Delivery Time: 8-15 work days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10 sets / month
    Contact Now
    Detailed Product Description
    Model: SA-YQ180 Max Pull Force: 180 KN
    Continuous Pullforce: 150 KN Name: Hydraulic Puller
    Apply: Transmission Line Site Valve: BOSCH
    Reducer: BOSCH
    High Light:

    hydraulic cable tensioner

    ,

    tension stringing equipment

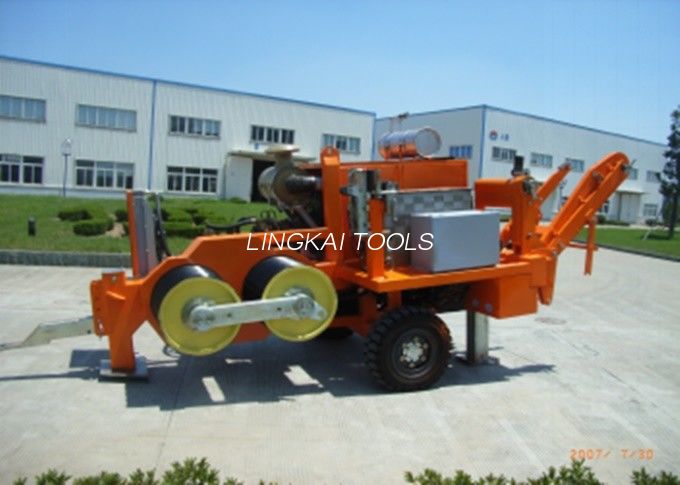

    SA-YQ180 Hydraulic Puller Stringing Equipment For Pulling 220KV Conductor



    This SA-YQ180 Hydraulic Puller is designed with an overload automatic protection system. Users can preset the maximum traction force for conductor-stringing operation. Both traction force and pulling speed are steplessly adjustable. It is convenient for our users to read the pull in the rope from the line pull gauge.

    In case of the hydraulic failure caused by the sudden flameout of motor or other reasons, the automatic braking function can well ensure the safe operation of our SA-YQ180 Hydraulic Puller. Additionally, the hydraulic type rope clamping device provides convenience for the replacement of steel wire rope reel. By adopting the steel wire rope automatically winding device, it is really easy to load and unload, as well as arrange the rope.

    Technical Parameters

    SA-YQ180 Hydraulic Puller Stringing Equipment For Pulling 220KV Conductor

    Model SA-YQ180 Hydraulic Puller
    Maximum Traction Force (kN) 180
    Continuous Tractive Effort (kN) 150
    Maximum Pulling Speed (km/h) 5
    Bullwheel Bottom of Groove Diameter (mm) Φ630
    Number of Bullwheel Grooves 9
    Maximum Diameter of Suitable Steel Rope (mm) Φ24
    Maximum Through Connector Diameter (mm) Φ65
    Engine Power / Speed (kW/rpm) 209/2100
    Dimensions (mm) 5500× 2170× 2570
    Weight (kg) 8000

    Main Configurations

    SA-YQ180 Hydraulic Puller Stringing Equipment For Pulling 220KV Conductor

    Engine Cummins (USA) water-cooled diesel engine
    Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
    Reducer RR (Italian)
    Main Hydraulic Valves Rexroth (BOSCH)
    Radiator AKG
    Hydraulic Instrument WIKA
    Suitable Drum Model GSP1600 (Item number: 07125D)
