Belt Driving Stably Come Along Winch 3 Ton Small Volume With YAMAHA Engine

Belt Driving Stably Come Along Winch 3 Ton Small Volume With YAMAHA Engine
Belt Driving Stably Come Along Winch 3 Ton Small Volume With YAMAHA Engine

Large Image :  Belt Driving Stably Come Along Winch 3 Ton Small Volume With YAMAHA Engine

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM3Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Model: JJM3Q Name: Cable Winch Puller
Engine: YAMAHA Power: Gasoline
Force: 3T Using: Pulling Rope
High Light:

portable capstan winch

,

gas powered winch

3 Ton Belt Driven Cable Winch Puller Cable Pulling Winch With YAMAHA Engine



Brief introduction of engine powered winch

3 Ton Belt Driven Cable Winch Puller Cable Pulling Winch With YAMAHA Engine

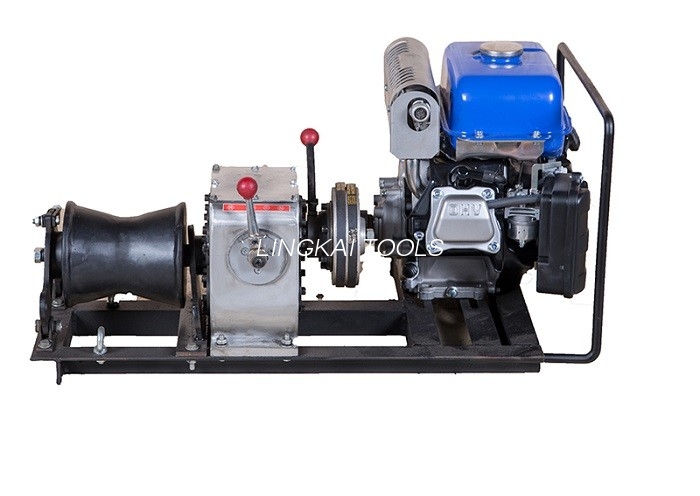

The winch is powered by YAMAHA gasoline engine. It is drived by V-belt between power and gear box, and is equipped with brake clutch.

Cable Winch is used for tower erection, pole setting, stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Cable Winch Puller 3 Ton Gas Engine Powered Cable Drum Winch For Hoisting

Features of engine powered winch

1. High versatility

2. Compact structure

3. Small volume, light weight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the pulling length.

7. Adjustable pulling speed for different usage environment.

Technical Data of 3 Ton Belt Driven Cable Pulling Winch With YAMAHA Engine

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3-Q YAMAHA engine Slow 4 3
Quick 7 1.8
Reverse 3.5 No lifting

Other Type Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3Q Petrol engine 6HP Slow 4 3
Quick 7 1.8
Reverse 3.5

Brief Introduction

Winch is simple and lightweight structure. Can be used for transmission line construction neutral tower, overhead line and other operations, is set up aerial high voltage transmission lines and laying of underground cable construction machinery, smooth, easily Tower Group legislature leather in a variety of complex conditions, erection and other lifting wires, traction. The experiments and field proven practical effect, have combined management, small size, light weight, great skill, flexible operation, easy handling advantages and widespread electricity operators welcome.

Belt Driving Stably Come Along Winch 3 Ton Small Volume With YAMAHA Engine 0

Other types capstan winch:

Belt Driving Stably Come Along Winch 3 Ton Small Volume With YAMAHA Engine 1
